Name: j5create Wireless Extender for USB™ Cameras / Microphones / Speakers (DI-JVW120) [Made in Taiwan]
Brand: j5create
SKU: 65430146a51c180020123b17
Price: 813.0 HKD
Availability: InStock

j5create Wireless Extender for USB™ Cameras / Microphones / Speakers (DI-JVW120) [Made in Taiwan]

The j5create Wireless Extender for USB™ Cameras / Microphones / Speakers turn your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m)

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

HK$929.00

HK$813.00

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

Description

Shipping & Payment

Customer Reviews

Description

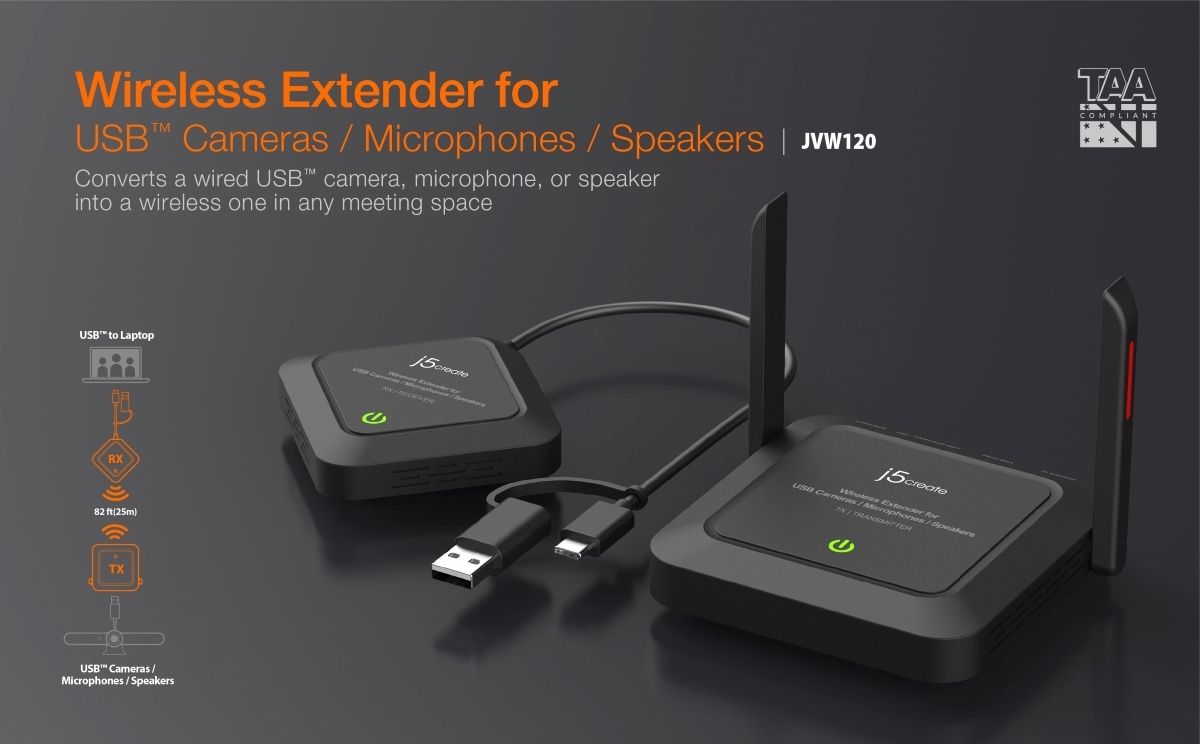

JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers

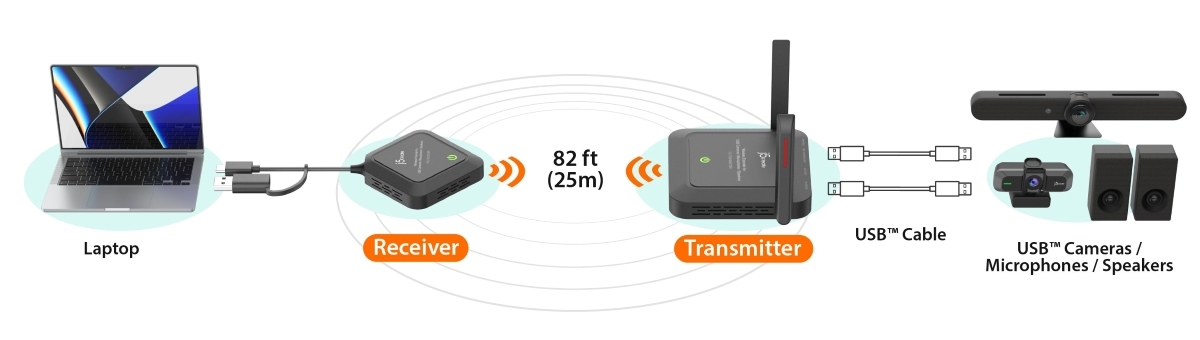

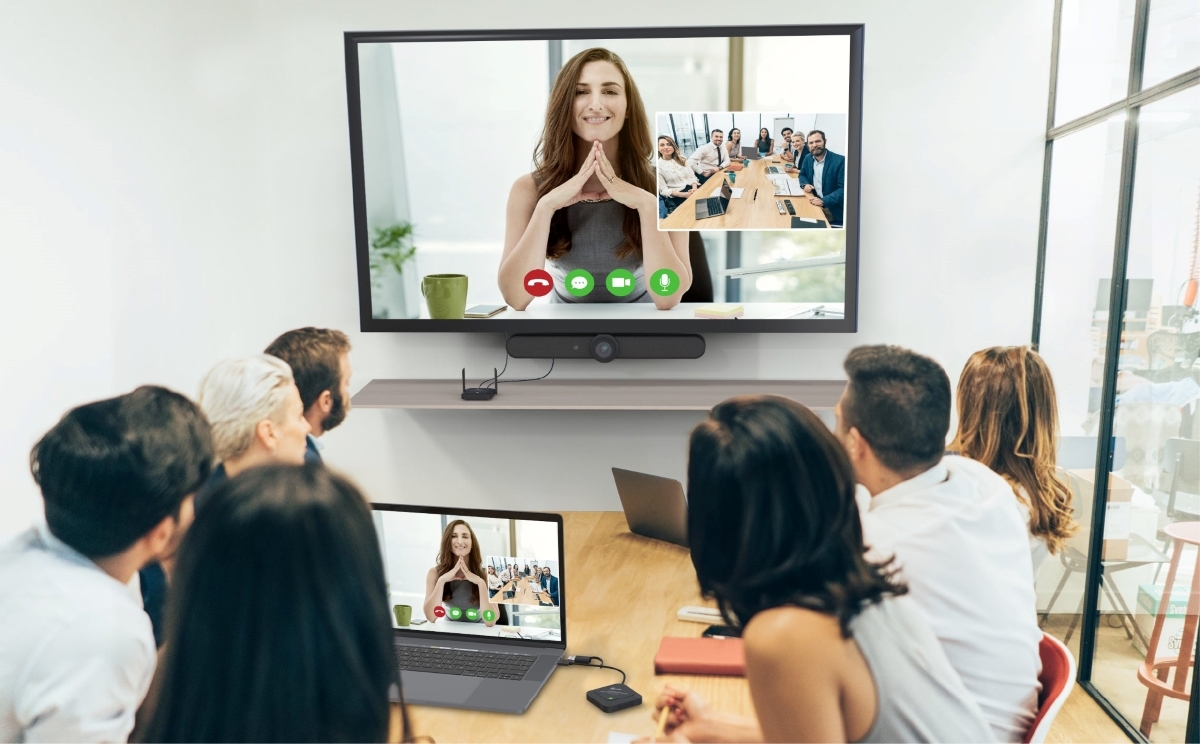

The j5create Wireless Extender for USB™ Cameras / Microphones / Speakers turn your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows®, macOS®, and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.

Features

Low-latency audio and video transmission via USB™

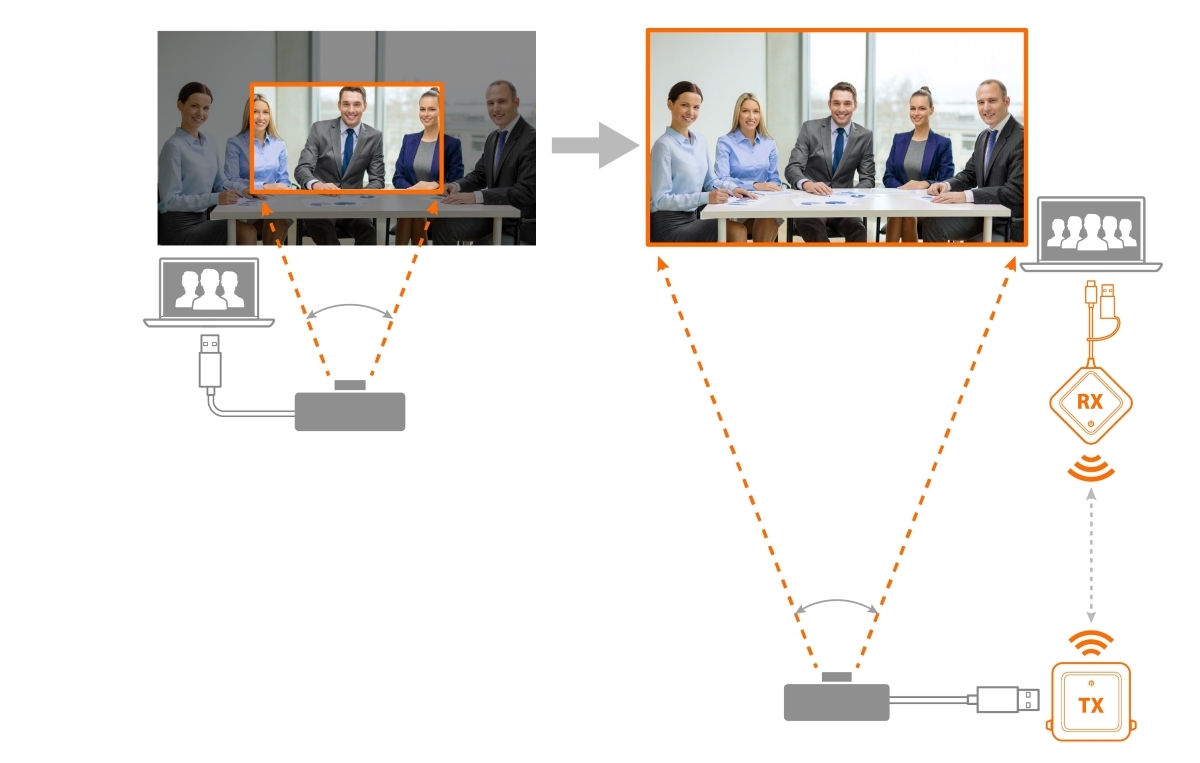

Converts a wired USB™ camera into a wireless one
Provides support for USB™ camera with microphones/speaker
Wireless transmission distance can reach up to 82 ft. (25 m)
5 GHz frequency ensures a stable connection
Supports resolution up to 1080p@30 in MJPEG format, and 1080p@60 and 4K@30 in H.264 format
Compatible with Windows®, macOS®, Chrome OS™

System Requirements

Available USB-C® or USB™ Type-A port
Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™

Special Notes

Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically

Specifications

Hardware

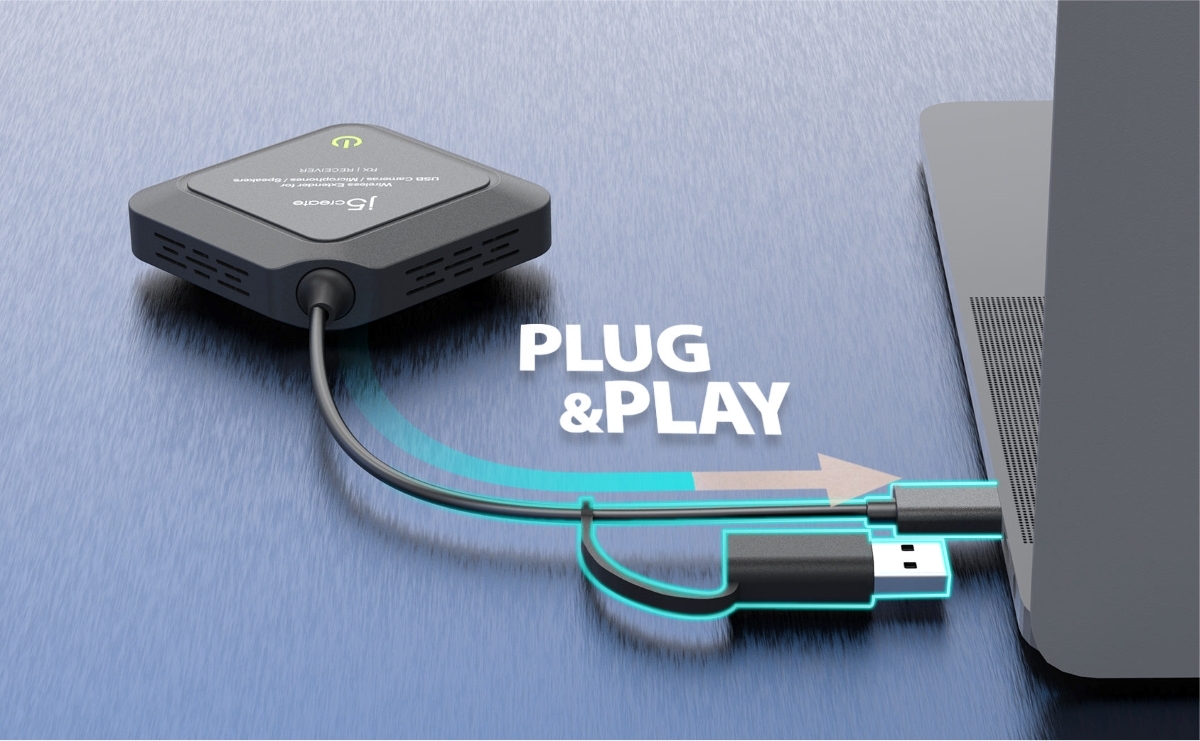

Host Connector	RX│Receiver: USB-C® or USB® Type-A port
Power Source	TX Transmitter: 1 - DC 5V/3A Power Adapter RX│Receiver: 1 - Bus Power through USB-C®
LED Indicator	TX│Transmitter / RX│Receiver: • Red: Power on • Orange: Waiting to connect *TX and RX are connected, but the USB™ camera or USB™ Speaker/Microphone are not connect to TX USB™ port • Orange flashing light: TX / RX pairing • Green: TX / RX connected, and TX USB™ camera is enabled.
Pair Button	Pair Button If TX are RX devices are close together but, the TX and RX device’s LEDs are red and or if they disconnect, please try turning on “pairing mode”. To turn on paring mode find the Pair button located on the bottom side of TX and RX device, push and hold the TX and RX device’s pairing button 5 seconds, the power LED will change orange and will blink for 1 minute. If TX and RX device are paired, the LED will turn green and will stop blinking.

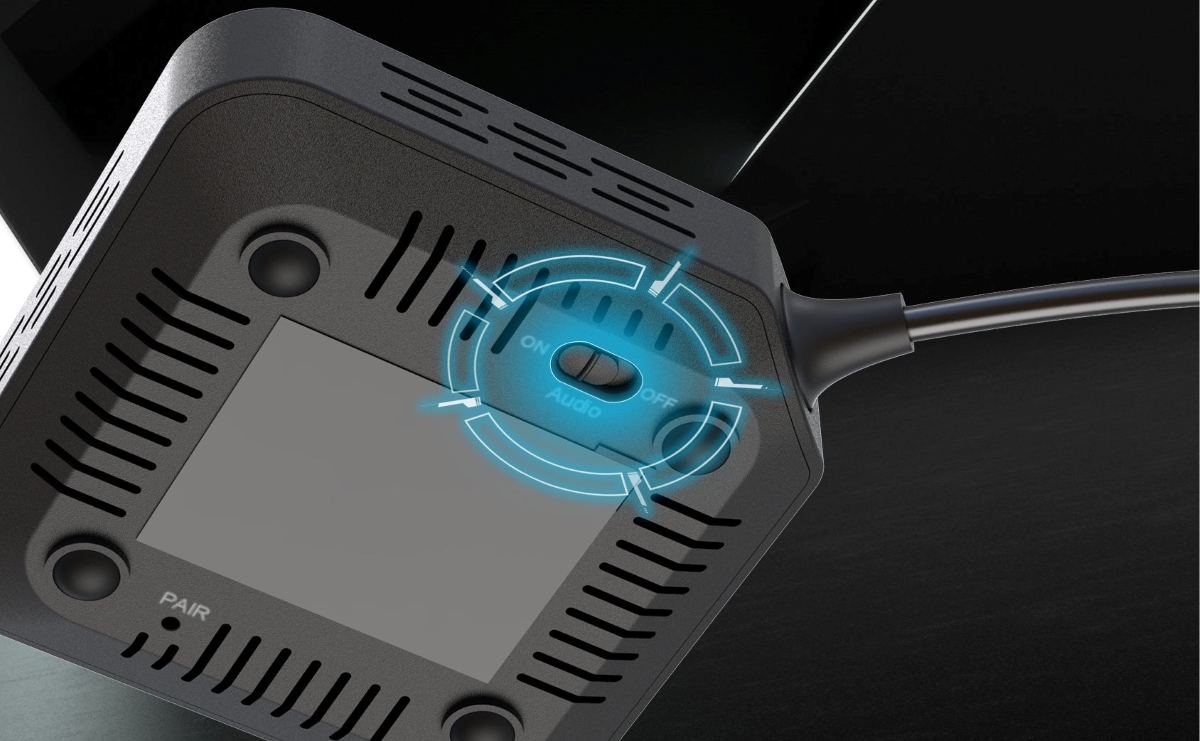

Audio ON/OFF Switch	RX│Receiver: Located on the RX device’s bottom side, the "Audio ON/OFF switch" quickly enables or disables audio - Switch to ON: enables audio - Switch to OFF: disables
Ports	TX│Transmitter:1 - USB-C® Power In 1 - USB™ Type-A Female (Camera) 1 - USB™ Type-A female (Speaker/Microphone) 1 - 3.5 mm Speaker Out
IR	N/A
Performance
Audio Channel	2.1 CH stereo
Display Output Supported Resolutions	H.264:2160p / 1080p / 720p / 480p / 240p @ 30 FPS 1080p @ 60 FPS MJPEG:1080p / 720p / 480p / 240p @ 30 FPS YUV:1080p / 720p / 480p / 240p
RF Output Power	+15 dBm ±1 dBm
Security (Encryption)	128/256-bit AES based encryption WPA2 authentication protocol
IR Return Frequency	N/A
ESD Protection	N/A
OVP Protection	N/A
Wireless Protocols
Standard	IEEE 802.11ac
Frequency	5 GHz Band I, Band IV, CE Only Band I
Range	Up to 82 ft. (25 m)
Channel Width	80 MHz
Antenna Type	Transmitter (TX): External antenna x 2 Receiver (RX): Built-in antenna
Physical Specifications
Color	Black
Enclosure Type	Plastic
Cable Length	Receiver (RX): 6.5 in. (16.5 cm)
Product Height	Transmitter (TX): 0.9 in. (23 mm) Receiver (RX): 0.83 in. (21 mm)
Product Width	Transmitter (TX): 3.74 in. (95 mm) Receiver (RX): 2.63 in. (67 mm)
Product Depth	Transmitter (TX): 3.74 in. (95 mm) Receiver (RX): 2.63 in. (67 mm)
Product Weight	Transmitter (TX): 3.95 oz (112 g) Receiver (RX): 1.95 oz (55.5 g)
Operating Temperature	+32 to +104°F (0 to +40°C)
Operating Humidity	< 85% non-condensing
Storage Temperature	-4 to +122°F (-20 to +50°C)
Storage Humidity	< 85% non-condensing

Package Contents

1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x Receiver)
1 - DC 5V/3A Power Adapter
1 - Hook and loop fastener
1 - Quick Installation Guide (QIG)
