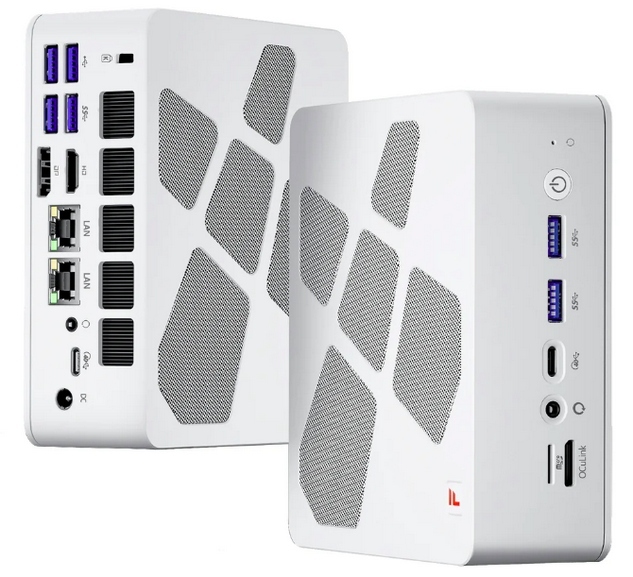

FIREBAT A8 mini PCFIREBAT A8 is a high-performance mini PC known for its powerful AMD Ryzen hardware and versatile "one-click" mode switching. It is primarily available in two main configurations: one featuring the AMD Ryzen 7 8845HS and a newer "Strix Point" refresh with the Ryzen AI 9 365.
One-click Switch Performance Mode
FIREBAT mini PC allows you to switch performance mode with one click! Green for quiet mode 45W (suitable for office), blue for balanced mode 54W (suitable for medium and low load applications), and red for performance mode 65W (suitable for large games). Switch to different modes according to different usage environments. Stable and efficient performance supports smooth and fast operation of the machine and improves your usage efficiency.
OCuLink Port
FIREBAT mini PC equipped with the high-bandwidth OCuLink port, operating on an independent channel without occupying any M.2 slots. Operating at PCIe 4.0 x4 speeds enables higher bandwidth capabilities, better frame rates, and lower lag. OCuLink enables connections to high-performance GPUs like RTX 5070Ti/5070/4080/4070 with almost no performance loss, providing faster speeds and fewer transfer bottlenecks for external GPU solutions. Gamers and content creators can benefit from OCuLink's higher bandwidth, resulting in better performance and lower lag for eGPU setups. *OCuLink port does not support hot-swapping!
Powerful Configuration
FIREBAT mini PC is equipped with 8745HS CPU (8 cores/16 threads/Zen 4 architecture/3.8-4.9GHz frequency/16MB L3 cache). Equipped with 32GB DDR5 5600MHz memory (dual-channel, can be expanded up to 64GB), 1TB PCIe 4.0 M.2 2280 SSD. The combination of Zen 4 architecture and AMD Radeon 780M graphics card brings powerful graphics processing capabilities. The whole mini PC runs at 65W performance mode, 54W balanced mode, and 45W quiet mode, bringing higher performance.
8K Quad Screen Display
FIREBAT A8 mini PC is equipped with dual USB Type-C 4.0 video output, DisplayPort (1.4), and HDMI (2.1). The latest HDMI (2.1) port can connect to large-screen TV and display monitors and output up to 8K@60Hz resolution. The USB Type-C display port video output can connect to the latest monitor displays utilizing 4K@144Hz. Features a simultaneous four-screen display.
Stronger and More Interfaces, Faster Connections
FIREBAT A8 mini PC is equipped with 1 x OCuLink(support external graphics card), 1 x TF card slot, 2 x USB Type-C 4.0 (PD/DP/up to 40Gbps data), 4 x USB 3.2 Gen2 Type-A (up to 10Gbps data), 2 x USB 2.0, 1 x anti-theft lock hole (Kensington), DisplayPort (1.4) + HDMI (2.1) (4K@120Hz, 8K@60Hz), 2 x 3.5mm audio jack (HP&MIC), 2 x 2.5Gbps RJ-45 LAN, WiFi 6 (802.11ax), Bluetooth 5.2, easily paired with various devices for ultra-faster connection, more smooth streaming. For all your needs, taking up no desk space.
Specifications :
| Model |
A8 |
| Processor |
AMD Ryzen™ 7 8745HS, 8 cores / 16 threads, turbo up to 4.9GHz, 16MB L3 Cache |
| Graphics |
AMD Radeon™ 780M (up to 2.6GHz) |
| Memory |
Dual Channel DDR5 SODIMM Slot x 2 (max. 64GB)
Pre-instaled : 16GB DDR5-5600
|
| Storage |
2 x M.2 2280 PCIe 4.0 SSD Slots (max. 2TB)
Pre-installed : 512GB M.2 2280 NVMe SSD
|
| LAN |
2 x 2.5Gb Ethernet RJ-45 Ports |
| Wireless |
- WiFi 6 (802.11ax)
- Bluetooth 5.2 |
| Video Output |
HDMI (2.1) x 1 (4K@120Hz, 8K@60Hz)
DisplayPort (1.4) x 1
USB 4.0 Type-C x 2
Support 4 displays
|
| Audio Output |
HDMI (2.1) x 1
3.5mm Audio Jack x 2 |
| I/O Ports |
HDMI (2.1) x 1
DisplayPort (1.4) x 1
USB 4.0 Type-C x 2
USB 3.2 Gen 2 Type-A x 4 (10 Gbps)
USB 2.0 x 2
2.5Gb Ethernet RJ-45 Port x 2
OCuLink Port x 1 (64 Gbps)
3.5mm Audio Jack x 2
Micro SD Card Slot x 1 |
| Cooling System |
Dual Power Cooling Fan + 3 Heat Pipes |
| Other Feature |
One-click Switch Performance Mode :
Quiet Mode, Balance Mode, Performance Mode |
| Color |
White |
| Operating System |
Windows 11 Pro |
| Dimensions |
147.5 x 126.5 x 50 mm |
