Name: 「預購中 1 月下旬到貨」Minisforum MS-02 Ultra (Intel) (BS-MM2U285 / CS-MM2U285 / CS-MM2U28D / BS-MM2U275 / CS-MM2U275 )
SKU: 695b6010c8d0850012660bf2
Price: 7999.0 HKD
Availability: InStock

「預購中 1 月下旬到貨」Minisforum MS-02 Ultra (Intel) (BS-MM2U285 / CS-MM2U285 / CS-MM2U28D / BS-MM2U275 / CS-MM2U275 )

Processor: Intel® Core™ Ultra 9 285HX | 275HX
Memory & Storage: Dual DDR5-4800MHz | M.2 2280 SSD Slot
Expansion: PCIe 5.0 x16 Slot (Bifurcation Support)
USB: 2 x USB4 V2 (80 Gbps, DP 2.0 Alt Mode)
High-Speed Network: 2 x 25GbE SFP+ (285HX Only)
Connectivity: 1 x 10GbE RJ45 LAN |

指定分類，「只限香港」免運費，請選擇送貨上門(+$100)選項，結帳時將自動減免「優惠不適用於商品名稱中加有指定運費產品

全店，買滿 $2000 免運費（只限香港）(澳門地區:桌上顯示器/電競椅網椅及所有ASUS產品不提供免運費優惠)

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}

數量

加入追蹤清單

一次最大商品購買數量限制為 99999

該數量不適用，請填入有效的數量。

售完

若想購買，請聯絡我們。

加入追蹤清單

商品描述

送貨及付款方式

顧客評價

商品描述

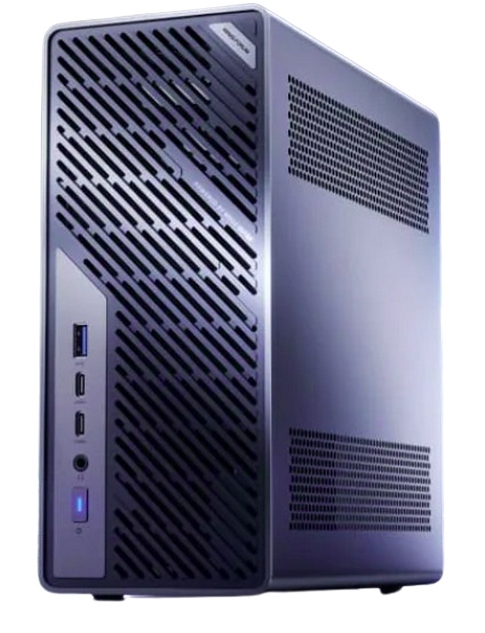

Minisforum MS-02 Ultra mini PC

Minisforum MS-02 Ultra is a highly modular and powerful mini PC designed for professional and enthusiast workloads, featuring an Intel® Core™ Ultra 285HX or Ultra 9 275HX processor and extensive expansion options. Its key strengths are its strong CPU performance, significant expandability (including a PCIe 5.0 x16 slot), and ultra-fast networking capabilities.

Processor : Powered by Intel® Core™ Ultra 285HX or Ultra 9 275HX, featuring 24 cores to effortlessly handle intensive workloads like AI development, 3D rendering, and 4K video editing.
Memory : 4 x DDR5 SO-DIMM slots, supporting up to 256 GB total capacity at up to 4800 MT/s (ECC for 285HX ; non-ECC for 275HX), ensuring stability and fault tolerance for mission-critical tasks.
Storage : Four (285HX model) or Two (275HX model) M.2 2280 PCIe 4.0 x4 slots offer massive storage potential, with total capacity support up to 16/32TB, allowing you to store all your projects and assets in one place.
Graphics & Expansion : Its revolutionary design includes three PCIe slots: a full-length PCIe 5.0 x16, a full-length PCIe 4.0 x16, and a PCIe 4.0 x4 . Install a dual-slot GPU, a high-speed network card, or other expansion cards simultaneously.
Ultra-Fast Connectivity : Features next-generation USB4 V2.0 ports on the front panel, delivering blazing 80 Gbps bandwidth for ultra-fast external storage and eGPU connectivity.
Professional Networking : High-end configurations come pre-installed with a dual 25GbE SFP+ fiber network card (285HX model), alongside a 10GbE and a 2.5GbE RJ-45 port with vPro support, making it a beast for data transfer and remote management.
Wireless Ready : Equipped with WiFi 7 and Bluetooth 5.4 for the latest wireless speeds and connectivity.
Rich I/O Ports : Comprehensive connectivity includes HDMI (2.1), multiple USB 3.2 Gen 2 Type-A ports, and a 3.5mm audio jack.
Advanced Cooling : A server-inspired thermal design enables a maximum 240W total system performance, with both the CPU and GPU capable of a 140W sustained power draw.
Effortless Maintenance : A slide-out chassis design makes upgrading and maintenance simple and tool-free.

Specifications :

Model	MS-02 Ultra 275HX / MS-02 Ultra 285HX
Processor	Intel® Core™ Ultra 9 275HX, 24 cores /24 threads, turbo up to 5.4GHz, 36 MB Intel® Smart Cache Intel® Core™ Ultra 9 285HX, 24 cores /24 threads, turbo up to 5.5GHz, 36 MB Intel® Smart Cache
AI Engine Capabilities	Up to 13 TOPS
Graphics	Intel® Graphics (up to 2.0GHz)

Memory	4 x DDR5 SO-DIMM slots,Up to 4800 MT/s (max. 256GB) Non-ECC (275HX) ; ECC Supported (285HX) Pre-installed : 0GB / 32GB / 192GB (ECC) DDR5
Storage	2 x M.2 2280 NVMe SSD slots (PCIe 4.0 x4, Up to 16TB) 2 x M.2 2280 NVMe SSD slots (Integrated on the 25GbE NIC; up to 16TB) (285HX) Pre-installed : 0GB / 1TB / 2TB SSD
Expansion Slots	1 x PCIe 5.0 x16 Slot (bifurcation support) 1 x PCIe 4.0 x16 Slot (PCIe 4.0 x4+x4+x4) (275HX) 1 x PCIe 4.0 x16 Slot (Physically populated by a pre-installed 25GbE NIC & 2 x M.2 SSD Slots) (285HX) 1 x PCIe 4.0 x4 Slot
Ethernet	1 x 2.5 GbE RJ-45 LAN (I226-LM, vPro) 1 x 10 GbE RJ-45 LAN (Realtek RTL8127) 2 x 25 GbE SFP+ NIC (Intel E810) (285HX)

Wireless Connectivity

Wi-Fi 7 & Bluetooth® 5.4(Intel® BE200 Module, M.2 2230)

Video Output	1 x HDMI (2.1) FRL (8K@60Hz, 4K@120Hz) 2 x USB 4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz) 1 x USB 4 with DP Alt Mode (8K@60Hz, 4K@120Hz)
Audio Output	1 x HDMI (2.1) 2 x USB 4 V2 1.x USB 4 1 x 3.5mm Audio Jack
Audio Input	3.5mm Combo Jack (TRRS) x 1

I/O Ports

1 x HDMI (2.1)
2 x USB 4 V2 Type-C (80 Gbps, DP alt mode, PD 15W)
1 x USB 4 Type-C (40 Gbps,DP alt mode, PD 15W)
4 x USB 3.2 Gen 2 Type-A (10 Gbps)
1 x 2.5GbE RJ-45 LAN Port
1 x 10GbE RJ-45 LAN Port
2 x 25GbE SFP+ Ports (Intel E810) (285HX)
1 x 3.5mm Audio Jack

Board-Mounted Features	Button : Clear CMOS Button x 1 Debug LED : CPU x 1 RAM x 1 VGA x 1 Boot x 1
Cooling System	Heatpipe : Six-heatpipe radiator with Phase Change Material (PCM) Fans : ① 70 x 25 mm + ① 60 x 20 mm (max.speed 5000 RPM)
Kensington Lock	Yes

Power	AC 100 ~ 240V, 50/60Hz, 6A (350W max.)
Operating System	Windows 11 Pro or None
Dimensions	221.5 x 97 x 225 mm
Weight	3.25 kg (275HX) 3.45 kg (285HX)
