Ubiquiti Unifi EnterpriseXG 24 24Port 10G Switch (USW-EnterpriseXG-24) (NE-UUENX24+CE-ACPC)

Ubiquiti Unifi EnterpriseXG 24 24Port 10G Switch (USW-EnterpriseXG-24) (NE-UUENX24+CE-ACPC)

24 Port 10G Switch , 24 Port 10G Downlink, With 2x 25G SFP28 , Build in 1.3" Touch Screen with AR Switch Management, Support VLAN , Layer 3 Features , UniFi Network Control ,Build-In Power Supply, Compact Size

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

HK$13,200.00
HK$12,790.00
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
Sign in/up now
Add to Wishlist
Sign in/up now
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Sign in/up now
Add to Wishlist
Sign in/up now
Description
Shipping & Payment
Customer Reviews
Description

Overview

  • Model: USW-EnterpriseXG-24 (Gen1)
  • Form Factor: 1U Rack mount
  • Layer 3 Support: Yes (✓)
  • Power Redundancy: DC Power Backup supported (USP RPS)

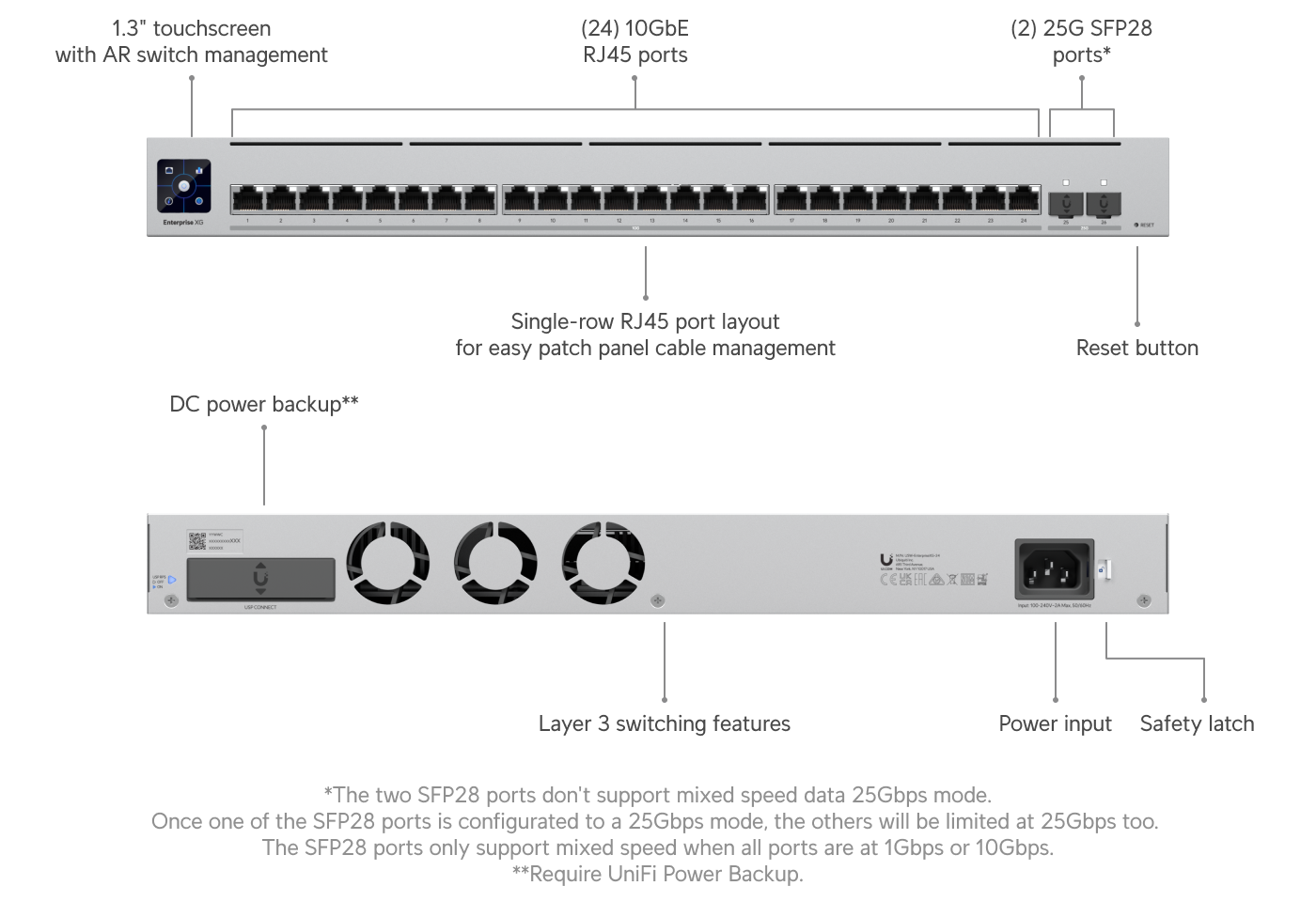

Port Layout

  • 10 GbE RJ45 Ports: 24 (Supports 10G / 5G / 2.5G / 1G / 100M auto-negotiation)
  • 25G SFP28 Ports: 2 (Supports 25G / 10G / 1G auto-negotiation)

Performance

  • Switching Capacity: 580 Gbps
  • Total Non-Blocking Throughput: 290 Gbps
  • Forwarding Rate: 432 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000 entries
  • IPv4 Static Routes: 256 entries
  • Packet Buffer Size: 4 MB
  • Access Control Lists (ACL):
    • IPv4: 128
    • MAC: 128

Layer 3 Features

  • DHCP Server (Local Networks): ✓
  • DHCP Relay: ✓
  • Inter-VLAN Routing (Local Networks): ✓
  • Static Routing (Local Networks): ✓

Layer 2 Features

  • LACP Port Aggregation: ✓
  • Spanning Tree Protocol (STP & RSTP): ✓
  • Quality of Service (QoS - DSCP): ✓
  • Pro AV Profiles: ✓ (Supports Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron, etc.)
  • Advanced IGMP Configuration: ✓ (Querier, Fast Leave, Router Port)
  • IGMP Snooping: ✓
  • 802.1X Network Access Control: ✓
  • MAC-Based ACLs & Device Isolation: ✓
  • DHCP Snooping & Guarding: ✓
  • Egress Rate Limit: ✓
  • Flow Control: ✓
  • Storm Control: ✓
  • Multicast & Broadcast Rate Limiting: ✓
  • MAC Address Blocking: ✓
  • IP-Based ACLs & Network Isolation: ✓
  • MAC-Based Port Restriction: ✓
  • Port Isolation: ✓
  • Port Mirroring: ✓
  • Jumbo Frames: ✓
  • LLDP-MED: ✓
  • Voice VLAN: ✓
  • Loop Protection: ✓
  • Virtual Network Override: ✓

Hardware Specifications

Power Specifications

  • Max. Power Consumption: 100W
  • Power Method:
    • (1) Universal AC input: 100–240V AC, 50/60 Hz
    • (1) USP RPS DC backup input
  • Power Supply: Internal AC/DC, 100W
  • Supported Voltage Range: 100–240V AC

Physical & Environmental

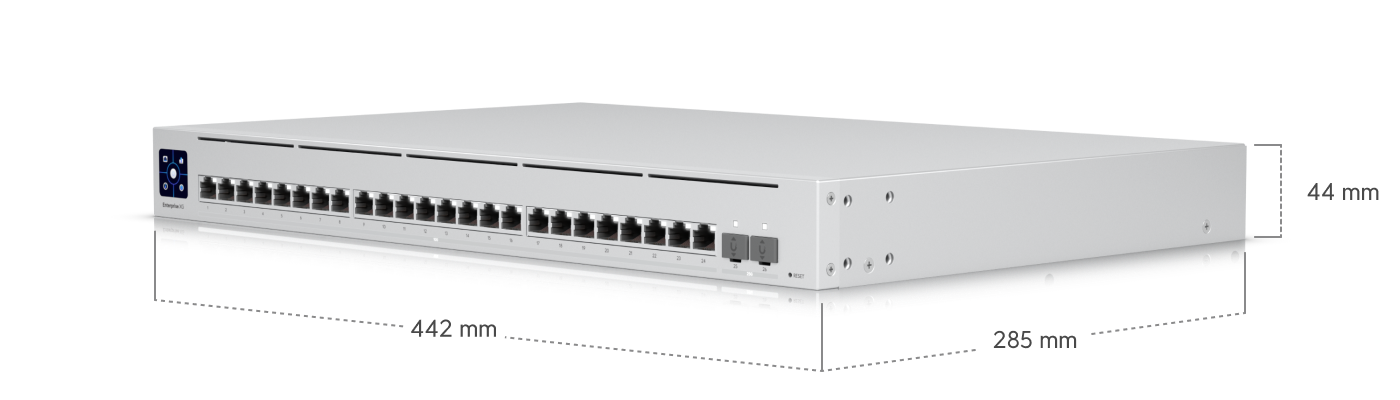

  • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Weight:
    • Without mounting brackets: 4.5 kg (9.9 lb)
    • With mounting brackets: 4.6 kg (10.1 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 400 ~ 1,200 mm (15.7 ~ 47.2")
  • LCM Display: 1.3" touchscreen
  • Management Interface: Ethernet AR (Augmented Reality)
  • Heat Dissipation: 341.2 BTU/hr
  • ESD Protection: Air: ± 16kV, Contact: ± 12kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 95% noncondensing

Certifications & Compliance

  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC, Anatel (06007-24-08356)

Software Requirements

  • Management Application: UniFi Network
  • Version Requirement: Version 6.1.67 and later
