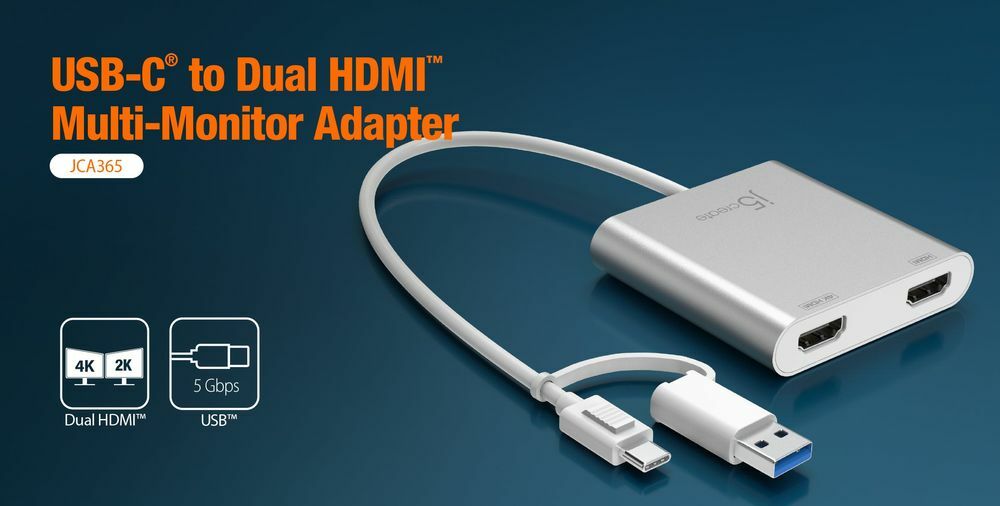

The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.
Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!
Features
Easily add two HDMI™ video outputs though a single USB-C® port
Compatible with USB-C® enabled macOS® & Windows® laptops
Supports Apple® M1/M2 Mac® (requires to install Driver)
Compact and lightweight design for maximum portability
4 display modes: Mirror, Extended, Primary, or Rotation*
*Rotation mode only available on Windows® computers
Supports resolutions up to 3840 x 2160 @ 30 Hz & 2048 x 1152 @ 60 Hz
Hot swappable USB™ enables you to add or remove monitors without rebooting your system
USB™ 3.1 provides up to 5 Gbps transfer rate which is 10x faster than USB™ 2.0
2-channel audio support
2-Year Warranty
System Requirements
Windows® 8 or later (32-bit or 64-bit)
macOS® 10.14 or later
Available USB-C® port
USB™ 3.1/3.0 is required for 4K resolutions
For Office applications/Web browsers:
CPU: Intel® Core™ i3 5th gen Dual Core 1.8 GHz
RAM: 4 GB memory or higher
For 2048 x 1152 @ 60 Hz full-screen video playback:
CPU: Intel® Core™ i5 5th gen Quad Core
RAM: 4 GB memory or higher
For one 4K or two 2048 x 1152 @ 60 Hz full-screen video playback:
CPU: Intel® Core™ i7 5th gen Quad Core
RAM: 8 GB memory or higher
GPU: Intel® HD Graphics 5xx or AMD™/ NVIDIA® equivalent or higher
Specifications
Hardware
Audio Supported
Yes
Host Connector
USB-C® 3.1 Male
Ports
1 - HDMI™ 1 - 4K HDMI™
Power Source
Bus-powered
Usb Pass-Through
No
Video Output
HDMI™ Female
Performance
Audio Channel
2.1 via HDMI™
Displays Supported
2
Max Data Transfer Rate
N/A
Max Display Refresh Rate
4K @ 30 Hz 2K @ 60 Hz
Max Display Resolution
3840 x 2160
Wide Screen Supported
N/A
Power
Power Consumption
≤ 600 mA
Power Delivery
N/A
Physical Specifications
Cable Length
7.87 in. (200 mm)
Color
Silver
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 104°F (0 to 40°C)
Product Depth
0.59 in. (15 mm)
Product Height
2.4 in. (61 mm)
Product Width
2.68 in. (68 mm)
Product Weight
2.96 oz (84g)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
Special Notes
The adapter is not intended for graphic intensive applications, such as gaming
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
The adapter can connect to a USB™ 2.0 port, but it will only support resolutions up to 2048 x 1152 @ 60 Hz
Video playback for Windows® users
Windows® Media Player’ is recommended for Windows® 8.1/8 users
Movies & TV’ is recommended for Windows® 10 users
Rotation mode is supported on Windows® only
Only one adapter is supported per macOS® computer
Content protected by HDCP may not play when connected to an unsupported display
Internet access is required to automatically install the driver on Windows® 10
To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model
Package Contents
1 - USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
1 - Quick Installation Guide (QIG)

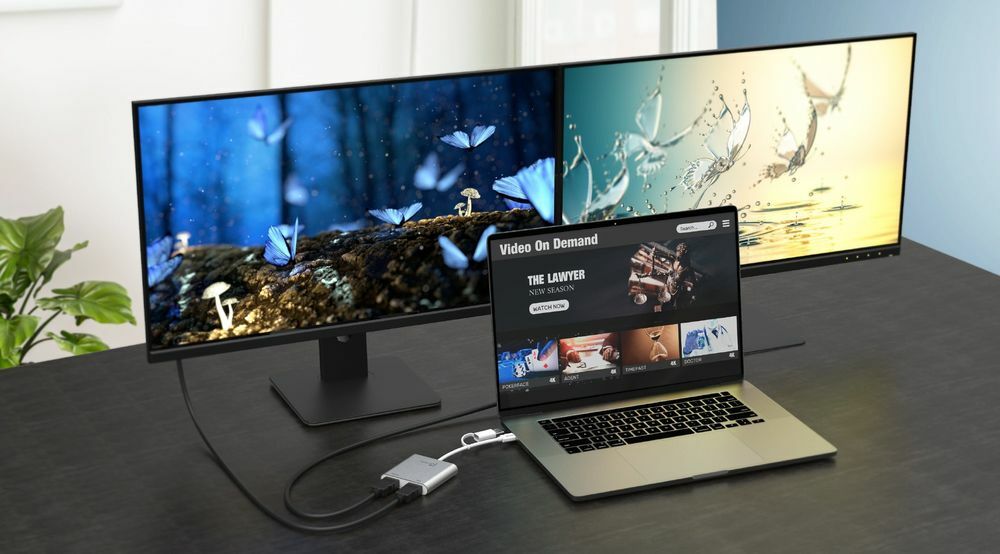

Easily connect two monitors for better productivity
Enjoy 4K UHD Resolution
Supports displays with resolutions up to 4K for a clear visual experience

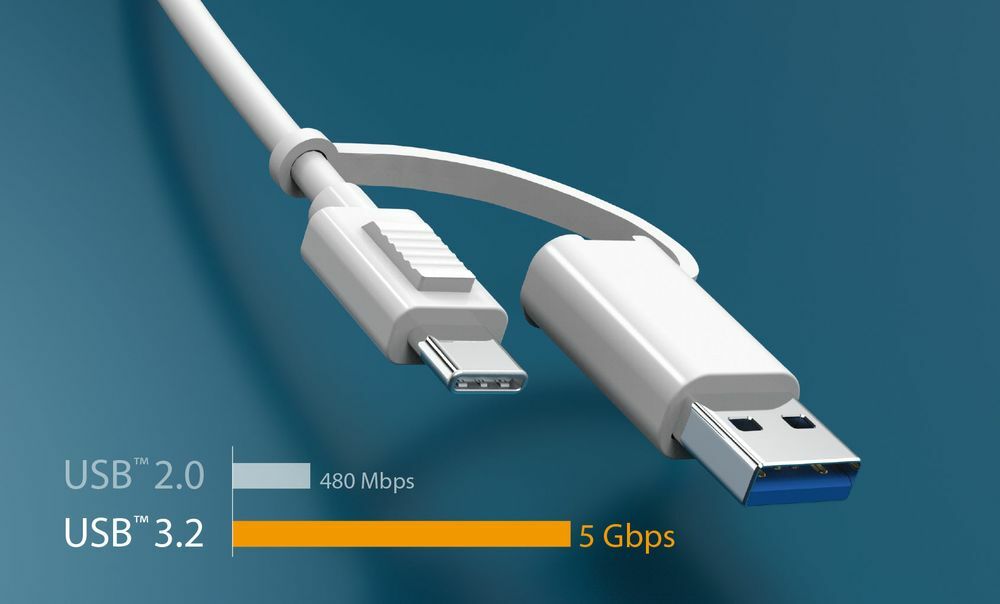

The USB-C® cable comes with a Type-A adapter for added compatibility
Supports 4 Display Modes
Mirror mode is used to clone one screen onto another, ideal for presentations. Extended mode allows you to extend your desktop across multiple displays, great for spreadsheets. Primary mode allows you to have individual applications open on each monitor, vastly improving productivity. Display Rotation allows you to view an image or report vertically, perfect for x-ray film.
Universal Compatibility
Compatible with both Mac® & Windows®

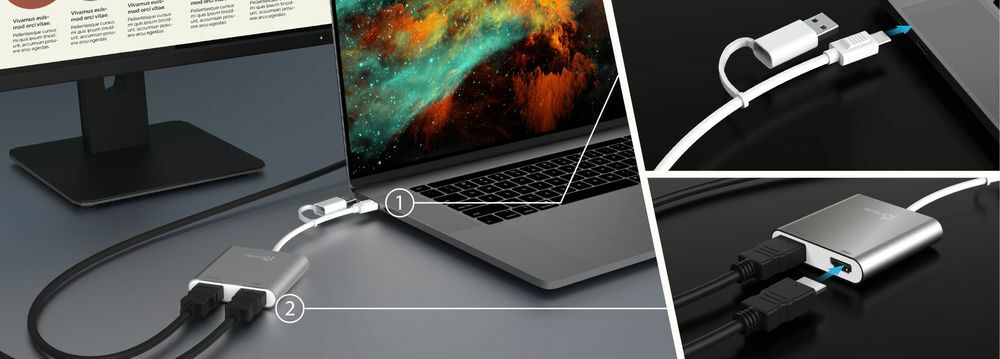

Fast Installation
Simply install the driver and plug in the USB™ cable then it's ready to go

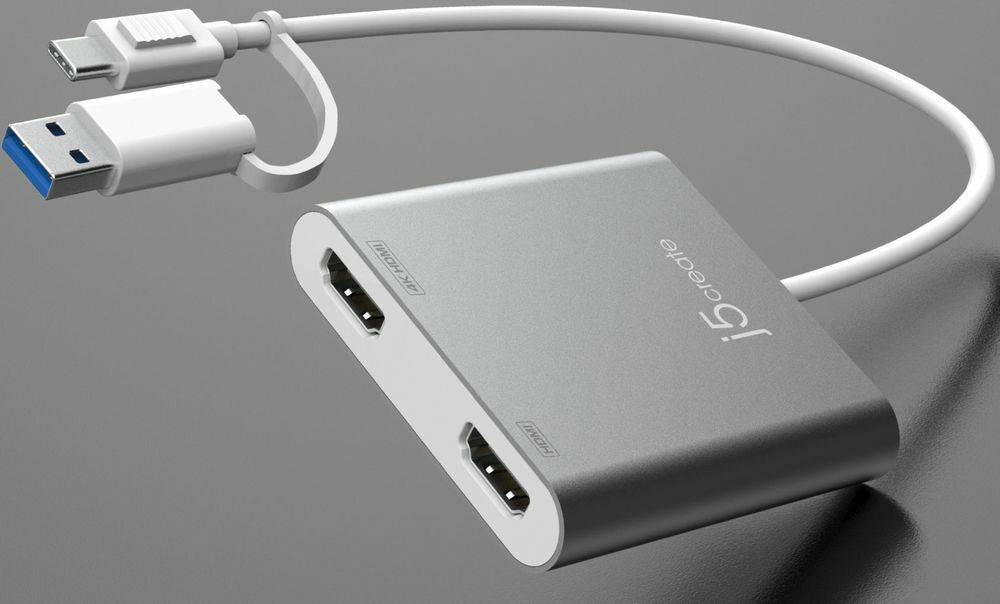

Made With a Durable, High Quality, Aluminum Shell
Compact and lightweight design for maximum portability.
