AMD Ryzen™ 7 8700G CPU with Radeon™ 780M GPU

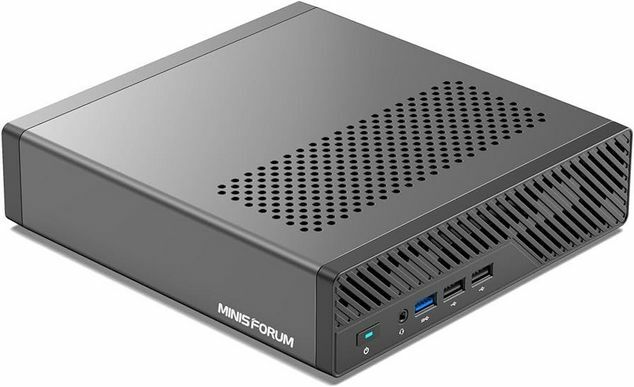

MS-A1 is equipped with the AMD Ryzen™ 7 8700G desktop processor, based on Zen4 architecture, featuring 8 cores and 16 threads, the max.boost clock frequency of 5.1GHz, and a 65W TDP, delivering unparalleled performance. It integrates the AMD Radeon™ 780M graphics card, with 12 GPU cores, a graphics card frequency of 2900MHz, effortlessly meeting graphics and gaming requirements.
MS-A1 features a built-in dedicated NPU unit, offering a maximum NPU computing power of 16TOPS, making it the first desktop processor to include a specialized AI Neural Processing Unit (NPU).
Dual Channels DDR5
Dual-channel DDR5 memory supports speeds of up to 5200MHz and up to 96GB, enabling users to achieve fast and efficient multitasking capabilities.
Three-Screen Display
Equipped with full-featured video output ports for HDMI (2.1), DP (2.0) and USB 4, the MS-A1 connects up to three 8K displays simultaneously, making it quick to build an efficient multitasking office.
High-Speed Network Ports
MS-A1 comes with two 2.5 Gbps RJ45 LAN ports and two USB 4 ports, offering an Ethernet total speed of up to 40Gbps. Additionally, it is equipped with an Oculink port, enabling fast data exchange and file transfers while also accommodating evolving technological and device requirements.
Full-Speed USB4
The MS-A1 features USB4 ports with speeds of up to 40Gbps, facilitating quick transfer of large files.
Support for Oculink
An external high-performance desktop graphics card can be connected to achieve a significant performance boost, meeting the demands of gamers and creative professionals for high-performance graphics processing capabilities.
Cold Wave Pro Cooling System
Employing dual-fan 4-heat pipe cooling, effectively reducing device temperature, ensuring stable performance release, its noise levels can go as low as 37 dB, providing a quieter working environment.
specifications :
| Model |
MS-A1 |
| CPU |
AMD Ryzen™ 7 8700G, 8 cores / 16 threads, turbo up to 5.1GHz, 16MB L3 cache |
| GPU |
AMD Radeon™ 780M (up to 2900MGz) |
| Memory |
Dual channel DDR5 SODIMM slots x 2 (5200MHz, max 96GB) |
| Storage |
4 x M.2 PCIe 4.0 NVMe SSD slots (up to 7000 MB/s) :
M.2 2280 SSD x 1 (PCIe 4.0 x1)
M.2 2280 SSD x 1 (PCIe 3.0 x4)
M.2 2280 SSD x 1 (PCIe 4.0 x4)
M.2 2110/2280 SSD x 1 (PCIe 4.0 x4)
|
| Ethernet |
2 x 2.5Gb Ethernet ports (RTL 8125BG) |
| Wireless LAN |
WiFi-6E (on M.2 2230) |
| Bluetooth |
Bluetooth 5.2 |
| Video Output |
1 x HDMI (2.1) (4K@120Hz)
1 x DisplayPort (2.0) (4K@144Hz)
1 x USB Type-C |
| Audio Output |
1 x HDMI
1 x DisplayPort
1 x 3.5mm audio jack (combo) |
| USB Ports |
1 x USB 4 (Data + DP)(40 Gbps)
1 x USB 3.2 Gen 2 Type-A (10 Gbps)
2 x USB 3.2 Gen 1 Type-A (5 Gbps)
2 x USB 2.0
|
| Expansion |
1 x OCuLink port (63 Gbps)(PCIe 4.0 x4) |
| Cooling |
Dual fans, four-heat pipe system |
| Power |
1 x DC-in jack (19V, 12.63A, 240W) |
| Button |
1 x Power Button (with LED)
1 x Reset Button (Clear CMOS) |
| Operating System |
Windows 11 |
| Dimensions (L x W x H) |
189.5×186×48MM |
