Description
Minisforum S100 mini PC
Minisforum S100 PC stick features the Intel N100 processor, delivering not only low power consumption but also quiet operation. It supports PoE IEEE 802.3at power delivery, enhancing performance and efficiency, making it convenient for various outdoor settings.
The S100 is a compact design that, when connected, turns a projector, monitor or TV into a fully functional computer. When used with other products, the possibilities are endless.
Intel® N100 Processor
Based on the highly efficient Gracemont architecture, the Intel® N100 processor features an Intel 7 processor, 4 cores and 4 threads up to 3.4 GHz, an integrated 24EU graphics processor, and TDP as low as 6W. It consumes very little power and generates very little heat. Compared to the N5105 processor, the N100 offers a significant performance increase, with a 500MHz increase in the maximum CPU frequency and a 2MB increase in the L3 cache.
RJ45 2.5G LAN
The S100's RJ45 2.5G network port supports Power over Ethernet (PoE) technology, which supplies power to the PC through this network port.
PD Power Supply
The USB-C port supports Alt mode, allowing non-USB signals to be transmitted via USB connection. Additionally, when this USB-C port is used to connect to a monitor that supports USB Power Delivery , it can transmit video signals to the monitor while providing power to the computer, making the desktop setup more streamlined.
USB-C to USB Hub N Port
It can be connected to the docking station via the USB-C port, but requires the docking station to have Power Delivery capability. Alternatively, the device can be powered using PoE functionality; if neither is available, it will not work.
Efficient Cooling System
The finely crafted fan blade design provides higher efficiency and quieter cooling performance. It maintains quiet operation even at low power or low temperature ranges. For users who need to use their computers for long periods of time, this ensures a quieter working environment with less noise pollution.
Palm-sized 4K Signage Solution
More than just a digital signage display, it's also a mini PC.
S100 vs Phone Size Comparison
The S100 is compact and portable, saving space and easy to install. Ideal for travel, it offers a seamless entertainment experience.
Usage Scenarios
The S100 offers versatile applications, connecting to various devices to provide convenience in your daily life and a wide range of entertainment options.
Specifications :
| Processor |
Intel® N100, 4 Cores / 4 Threads, turbo up to 3.4GHz, 6 MB Intel® Smart Cache |
| Graphics |
Intel® UHD Graphics |
| Memory |
LPDDR5 Single Channel (8GB,OnBoard, 4800Mhz)
|
| Storage |
UFS2.1 256G |
| Wireless Connectivity |
- Onboard Intel® AX200/201 WiFi 6
- Bluetooth 5.2 |
| Video Output |
HDMI (2.0) x 1
USB Type-C x 1 |
| Audio Output |
HDMI (2.0) x 1 |

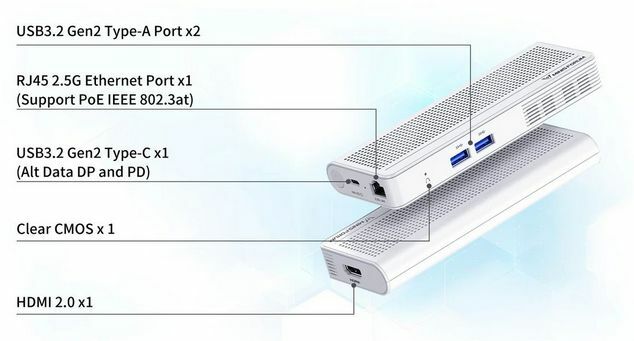

| I/O Ports |
HDMI (2.0) x 1
USB 3.2 Gen2 Type-C x 1 (Alt Data DP and PD)
USB 3.2 Gen2 Type-A Port x 2
RJ45 2.5G Ethernet Port x 1 (Support PoE IEEE 802.3at)
Clear CMOS x 1 |
| Power |
65W Type-C Power Delivery adapter(Included) |
| Operating System |
Windows 11 |
| Dimensions |
152 x 58 x 19.5 mm |
