Synology VisualStation VS360HD
Synology® VisualStation VS360HD is a compact, durable, and high-performance surveillance companion. It supports showing video feeds from up to 36 network cameras within a network when each camera is configured at 720p/10FPS, and dual Full HD mirrored display output via HDMI and VGA. It is also possible to support up to 5 megapixel resolution with less FPS or less channels.
Live View & Playback at Your Choice

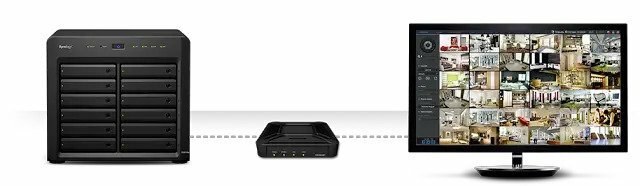

Synology VS360HD makes surveillance monitoring and playback simple. When paired with a Synology NAS running Surveillance Station 7 or later, VS360HD provides Full HD HDMI and VGA simultaneously mirrored display Live View output for up to 36 network cameras configured at 720p/10FPS. It is also possible to support up to 5 megapixel resolution with less FPS or less channels. Without requiring any costly computer, VS360HD is a powerful all-in-one solution for monitoring live feeds, browsing stored video footage, or capturing screenshots and saving them to an external USB drive.
Easy-to-Use Interface and USB Compatibility
Thanks to the versatile features of Surveillance Station, VS360HD is suitable for both beginner and advanced users. The intuitive interface ensures easy access to the most common functions, such as Live View, Timeline, and Recording List, which allows you to browse through recordings and export high-quality video clips or snapshots to an external USB drive. With the USB 3.0 port, users can connect a USB drive on VS360HD and reduce the time it takes to download video recording from Synology NAS to a USB drive. With a total of three USB ports on the VS360HD, users can also connect a mouse, keyboard, or even a joystick to easily operate specific IP cameras with PTZ (Pan-Tilt-Zoom) control. With a few simple mouse-clicks, useful camera angles can be saved and grouped together to form “Patrol” cycles, while optimized Live View layouts are fully customizable with a quick drag-and-drop.
VESA Mount Compliance and Durable Design
With the included VESA mounting kit, users can mount VS360HD on the back of any VESA compliant monitors. The small footprint design of VS360HD easily hides behind the monitor, reducing clutter and providing maximum working space. Compared to a traditional PC, VS360HD not only saves a large amount of space, but also consumes less power and boasts tough durability. VS360HD can endure industrial temperatures from -10 °C to 50 °C (14 °F to 122 °F), so there is no need to worry about overheating when installing VS360HD on the back of monitors or in harsh environments.
24/7 Security Solution for Everyone
Synology Surveillance Station offers a centralized interface to manage and monitor IP cameras in your shop, office, or home. In addition to its intuitive setup and hassle-free user experience, Surveillance Station features an optimized Live View panel with on-screen operations, smart analytics tools like motion detection, and an alert system that sends instant notifications through DS cam, SMS, and E-mail, when any suspicious behavior is detected. When paired with VS360HD, shop or business owners can ensure greater
security by positioning VS360HD higher risk areas, such as a front desks or checkout counter, while storing the main recording server in a locked closet or dedicated server room.
Wallet-Friendly Energy-Efficient
Thanks to its fan-less design, VS360HD is completely silent and requires only 4.76W when operating with 36 channels, and even lowers power usage down to only 3.61W when idle. As a PC-less surveillance solution, VS360HD economizes on both equipment and energy costs in the long-run.
Specifications (hardware) :
| USB Ports |
USB 3.0 x 1
USB 2.0 x 2 |
| Video Output |
HDMI x 1
VGA x 1 (mirrored display output) |
| Video Output Resolution Support |
1920 x 1080 (1080p), 60 Hz |
| Audio Output |
3.5 mm stereo audio jack x 2 (input/output) |
| LAN |
Gigabit x 1 |
| AC Power Input |
100V ~ 240V AC, 50Hz/60Hz, single phase |
| Power Consumption |
4.76W / 16.24BTU/hr (36 channels),
3.61W / 12.32BTU/hr (Idle) |
| Temperature |
Operating : -10 °C to 50 °C
Storage : -20 °C to 60 °C
|
| relative Humidity |
5% to 95% RH |
| Dimensions (H x W x D) |
32 x 130 x 130 mm |
| Weight |
300 g |
