Description
APNX V1 ATX Case
APNX V1 mid-tower case combines customizable cooling precision with a unique 45° angular intake design, all housed within a sleek, panoramic dual-chamber structure. Built for performance and user experience, the mechanism design offers optimized cooling options for GPU and CPU, with quick-release cooling brackets & panels for easy access, and neat & tidy cable management. Boasting a full tempered glass panoramic view and the choice of wood paneling for a refined touch, the V1 is perfect case for gamers, content creators, and PC builders seeking performance with a personality.
Unique Thermal Design
This innovative design within a dual chamber panoramic case structure features a 45° angular intake which enhances overall airflow and thermal efficiency for both the GPU and CPU, all while preserving the hallmark full tempered glass view. The angular intake panel supports three 120 mm, two 140 mm, and up to two 160 mm fans.
Form Follows Function
The top mesh ventilation pattern visualizes the unique path of the airflow within, intuitively demonstrating the cooling dynamics of the angular intake while improving top airflow.
Personalize Your Performance
The V1 offers two motherboard installation positions to grant more space for enhancing GPU airflow and cooling performance or for a comfortable installation of thicker radiators/fans to prioritize CPU cooling.
Take Control of Your Cooling
Enjoy a wide array of potential cooling configurations with ten fan slots plus support for liquid coolers up to 360mm and CPU coolers up to 170 mm.
Craftsmanship
Available in black, white, and a black-white mixed variants, V1 also features our first-ever wood-accented panel, crafted from solid walnut or ash wood with a protective finish. Choose a look that complements your style.
Easy Assess
The top, front-angled, and both side panels* are designed to lock and snap without the need to fidget with tools or screws. The V1 includes quick-release cooling brackets with minimal screws at the front-angled and bottom positions, ensuring easy installation for any fans or radiators.
Re-designed Storage Bracket
The user-friendly, hinged storage brackets allow for a streamlined setup and the installation of many storage devices.
Storage
Supports 2 x 3.5” HDD and 4 x 2.5” SSD or up to 6 x 2.5” SSD.
GPU Structural Support
A GPU mount with adjustable height and swivel angle is included so your heavy graphics card (up to 395mm in length) is in good hands.
Neat & Tidy Cable Management
V1 is designed for intuitive cable management. Clear cable channels with included velcro ties and rubber pathways in the side panel ensure a super-clean appearance for your build.
Hassle-free Maintanence
V1 includes removable filters on the bottom, side, and front-angled panels, plus a built-in top filter for hassle-free cleaning.
Small Bracket with Branding
A special bracket design addresses the void created by the adjustable motherboard displacement, also serving as a stylish brand decoration.

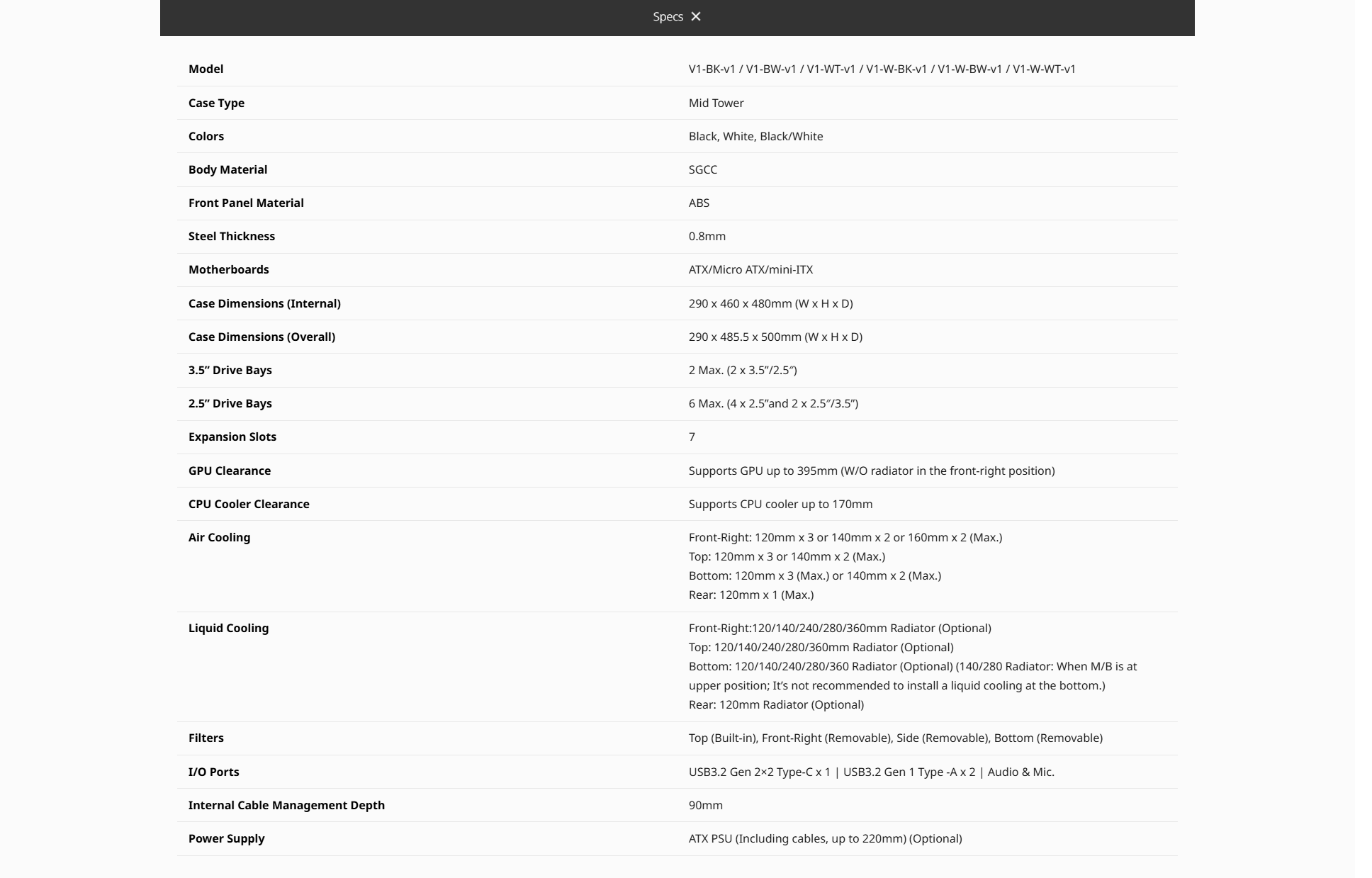

Specifications :
| Model |
V1-BK-v1 / V1-WT-v1 |
| Case Type |
Mid Tower |
| Motherboard Support |
ATX / micro ATX / mini-ITX |
| Storage |
2 x 3.5”/2.5″ drives or
4 x 2.5”and 2 x 2.5″/3.5” drives |
| Expansion Slots |
7 |
| Fan Support |
Front-Right : 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
Top : 3 x 120 mm / 2 x 140 mm
Bottom : 3 x 120 mm / 2 x 140 mm
Rear : 1 x 120 mm |
| Liquid Cooling |
Front-Right : 120 / 140 / 240 / 280 / 360 mm
Top : 120 / 140 / 240 / 280 / 360 mm
Bottom : 120 / 140 / 240 / 280 / 360 mm
(When M/B is at upper position; It’s not recommended to install a liquid cooling at the bottom.)
Rear : 120 mm |
| Dust Filter |
Top (Built-in)
Front-Right (Removable)
Side (Removable)
Bottom (Removable) |
| Power Supply Support |
ATX PSU |
| I/O Ports |
1 x USB 3.2 Gen 2×2 Type-C
2 x USB 3.2 Gen 1 Type -A
1 x Audio & Mic. |
| GPU Clearance |
Supports GPU up to 395 mm
(without radiator in the front-right position) |
| CPU Cooler Clearance |
Supports CPU cooler up to 170 mm |
| PSU Clearance |
Supports PSU up to 220 mm |
| Material |
Body : SGCC
Front Panel : ABS |
| Steel Thickness |
0.8 mm |
| Internal Cable Management Depth |
90 mm |
| Color |
Black / White |
| Dimensions (D x W x H) |
Internal : 480 x 290 x 460 mm
Overall : 500 x 290 x 485.5 mm |
