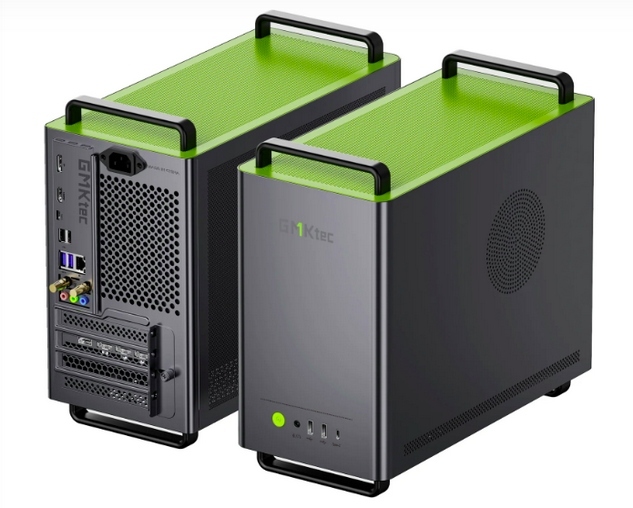

GMKtec NEO-X1 / NEO-X1 Pro Gaming PC (Ryzen 9 9955HX / 9955HX3D + RTX 5060 Ti / 5070)
The GMKtec NEO-X1 series is a compact 14.6L gaming PC sold with an official 2-year Hong Kong warranty. There are two models: the NEO-X1 pairs an AMD Ryzen 9 9955HX with an NVIDIA GeForce RTX 5060 Ti 8GB, and the NEO-X1 Pro pairs the 3D V-Cache Ryzen 9 9955HX3D with an RTX 5070 12GB. Both have 16 cores / 32 threads up to 5.4GHz, 32GB DDR5 (up to 96GB) and a 1TB PCIe 4.0 SSD, with CPU liquid cooling, three fans, a built-in 850W 80 PLUS Gold PSU and Windows 11 Pro. Two M.2 PCIe 5.0 slots take up to 16TB in total, and it drives up to 4 displays at up to 8K, with Wi-Fi 7 and 2.5G LAN.
Ideal For
- Gaming: AAA and esports titles on RTX 5060 Ti / 5070
- Video editing, 3D and CG work: 16 cores / 32 threads, up to 5.4GHz
- Local AI and GPU compute
- Multi-display work: up to 4 displays, up to 8K
- Space-saving setups: 14.6L metal chassis
Specifications
| GMKtec NEO-X1 / NEO-X1 Pro Specifications |
|---|
| Model |
GMKtec NEO-X1 (CS-GNEOX1) / NEO-X1 Pro (CS-GNEOX1P) |
| Processor |
NEO-X1: AMD Ryzen™ 9 9955HX (16C/32T, Zen 5, 4nm, up to 5.4GHz, 64MB L3)
NEO-X1 Pro: AMD Ryzen™ 9 9955HX3D (16C/32T, Zen 5, 4nm, up to 5.4GHz, 128MB L3 with AMD 3D V-Cache™) |
| Graphics Card |
NEO-X1: NVIDIA® GeForce RTX™ 5060 Ti 8GB GDDR7 (128-bit, 4,608 CUDA cores)
NEO-X1 Pro: NVIDIA® GeForce RTX™ 5070 12GB GDDR7 (192-bit, 6,144 CUDA cores) |
| Integrated Graphics |
AMD Radeon™ 610M |
| Memory |
32GB DDR5 5600MT/s (2 x SO-DIMM slots, up to 96GB) |
| Storage |
1TB M.2 2280 PCIe 4.0 NVMe SSD |
| Storage Expansion |
2 x M.2 PCIe 5.0 x4 slots, up to 8TB each, 16TB total |
| OS |
Windows 11 Pro (Ubuntu / Linux compatible) |
| Performance Modes |
Silent 54W / Balanced 85W / Performance 160W (170W peak) |
| Cooling |
CPU liquid cooling + 3 fans |
| Display Outputs |
Up to 4 displays, up to 8K
Graphics card: HDMI 2.1b x1 (8K@60Hz), DisplayPort 2.1b x3 (8K@60Hz)
Motherboard: HDMI 2.1 x1 (4K@60Hz), DisplayPort 1.4 x1 (8K@60Hz) |
| Front I/O |
USB-A 2.0 x2, USB-C (data, 5Gbps) x1, 3.5mm audio x1, power button |
| Rear I/O |
USB-A 3.2 Gen2 (10Gbps) x2, USB-A 2.0 x2, USB-C (data, 10Gbps) x1, 2.5G LAN (RTL8125) x1, external antenna connector, 3.5mm mic-in / line-out / line-in, AC power socket |
| Wireless |
Wi-Fi 7 (RZ717 / MT7925, up to 2.9Gbps) / Bluetooth 5.4 |
| Power Supply |
Built-in 850W SFX 80 PLUS Gold PSU |
| Chassis |
14.6L metal chassis, 350 x 165 x 265mm (without handle) |
| Weight |
Approx. 7kg |
| Warranty |
2-year Hong Kong warranty |
Hong Kong Warranty & Service
-
2-year warranty: official Hong Kong unit, serviced by the local distributor Hornington.
-
Customer Service (Repair) Centre: Room 712, 7/F, Century Centre, 44–46 Hung To Road, Kwun Tong, Kowloon, Hong Kong
-
Walk-in repair hours: Mon–Fri 10:10–18:30 (lunch 13:00–14:00); Sat 09:30–12:30; closed Sundays and public holidays. Drop-off and collection only, with no on-the-spot testing. For a short test, please arrive 20 minutes early.
-
Delivery / pickup: free delivery, or self-pickup after ordering at Unit 710, 7/F, Century Centre, 44–46 Hung To Road, Kwun Tong, Kowloon, Hong Kong
-
Pickup hours: Mon–Fri 10:10–12:30, 13:30–17:30; closed Sat, Sun and public holidays.
FAQ
Q: What is the difference between NEO-X1 and NEO-X1 Pro?
A: The NEO-X1 has a Ryzen 9 9955HX (64MB L3) and RTX 5060 Ti 8GB; the NEO-X1 Pro has a Ryzen 9 9955HX3D (128MB L3 with 3D V-Cache) and RTX 5070 12GB. Memory, SSD, ports and chassis are the same.
Q: Can I upgrade the memory and SSD?
A: Yes. There are 2 DDR5 SO-DIMM slots with 32GB 5600MT/s installed, up to 96GB. Storage has 2 M.2 PCIe 5.0 x4 slots, up to 8TB each and 16TB in total.
Q: How many monitors can it drive?
A: Up to 4 displays at up to 8K. The graphics card has HDMI 2.1b x1 and DisplayPort 2.1b x3 (all 8K@60Hz); for gaming, connect to the graphics card outputs.
Q: How is it cooled and powered?
A: The CPU is liquid-cooled with three fans, and a built-in 850W SFX 80 PLUS Gold PSU runs straight from an AC power cord, so no external adapter is needed.
Q: How do warranty repairs work?
A: You get a 2-year Hong Kong warranty. Bring the unit to our repair centre at Room 712, 7/F, Century Centre, Kwun Tong (drop-off and collection only).
Q: Can I pick up my order?
A: Yes. Choose self-pickup at Unit 710, 7/F, Century Centre, Kwun Tong (Mon–Fri 10:10–12:30, 13:30–17:30), or choose free delivery.
