Minisforum MS-03 Intel® Core™ Ultra 9 386H Mini Workstation (BS-MMS039/CS-MMS039A/CS-MMS039B) 3 year warranty

Minisforum MS-03 Intel® Core™ Ultra 9 386H Mini Workstation (BS-MMS039/CS-MMS039A/CS-MMS039B) 3 year warranty

Intel® Core™ Ultra 9 386H
Intel® Graphics
0GB/32GB/64GB DDR5 (5600MHz)
0GB/1TB M.2 2280 PCIe 4.0 SSD
HDMI (2.1) x 1 , USB 4 Type-C x 2
3 x USB 3.2 Gen 2 Type-A & 2 x USB 2.o ports
Dual 10G SFP+ (Intel X710), 10Gb LAN & 2.5Gb LAN
Wi-Fi 7，Bluetooth 6
PCIe 5.0 expansion slot
196*189*48mm
Windows 11 Pro

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

{{ productService.variationPriceMemberTag(variationSelected) }}
{{ 'product.member_only' | translate }}
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
{{ title.name_translations | translateModel }} : {{variationName[$index] | translateModel}}
Quantity
Sign in/up now
Add to Wishlist
Sign in/up now
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Sign in/up now
Add to Wishlist
Sign in/up now
Description
Shipping & Payment
Customer Reviews
Description

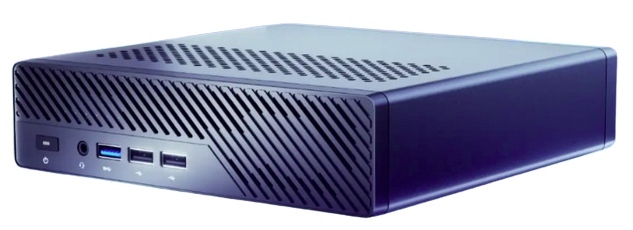

Minisforum MS-03 AI mini Workstation
Minisforum MS-03 powered by the Intel Core Ultra 9 386H processor is a compact, high-performance edge AI mini workstation. Specifically engineered for local artificial intelligence applications, homelabs, and advanced enterprise networking, this system steps away from consumer mini-PC trends to offer massive I/O and heavy compute capabilities in a tiny footprint.

  • Processor : Intel Core Ultra 9 386H (vPro Enabled) featuring 16 cores and 16 threads (no Hyper-Threading, all physical cores). It operates with a max turbo frequency of 4.9 GHz and utilizes up to 70W PL1 / 80W PL2 configuration mode.
  • AI Processing : Built-in NPU delivering up to 50 TOPS, highly capable of running 35B parameter local Large Language Models (LLMs) like Gemma out of the box (achieving ~22 tokens/sec).
  • Memory & Storage : Supports up to 128GB of dual-channel DDR5 SO-DIMM RAM (speeds up to 7200 MT/s). Features 3 x M.2 NVMe SSD slots, a physical PCIe 4.0 x16 slot (running at x4), and native U.2 NVMe enterprise drive support via an included adapter box.
  • Ultra-Fast Networking : Designed with massive networking throughput, incorporating dual 10G SFP+ ports, one 10G RJ45 ethernet port, and one 2.5G RJ45 port. It also includes Wi-Fi 7 and Bluetooth 6.
  • Connectivity : Dual USB 4 Type-C ports (up to 40 Gbps) and HDMI (2.1).
  • Management : Intel vPro remote management enabled for out-of-band IT control and deployment.


Specifications :
Model MS-03-S386H
Processor Intel® Core™ Ultra 9 386H, 16 cores / 16 threads, turbo up to 4.9GHz, 18 MB Intel® Smart Cache
Graphics Intel® Graphics (up to 2.5GHz)
AI Performance CPU : 50 TOPS (peak)
GPU : 40 TOPS (peak)
Memory Dual Channel DDR5 SO-DIMM Slots x 2 (supports 5600/6400/7200 MT/s, max. 128GB)
Pre-installed : 0GB / 32GB / 64GB (5600MHz)
Storage  Three M.2 2280 SSD Slots :
1 x M.2 2280 NVMe SSD slot (PCIe 5.0 x4, up to 8 TB; supports U.2 NVMe SSD via the included M.2-to-U.2 adapter, up to 15 TB, 7 mm-thick)
1 x M.2 2280/22110 NVMe SSD slot (PCIe 5.0 x4, up to 8 TB)
1 x M.2 2280/22110 NVMe SSD slot (PCIe 4.0 x1, up to 8 TB)
Pre-installed : 0TB / 1TB M.2 2280 PCIe 4.0 SSD
PCIe Expansion 1 x PCIe x16 Physical Slot
(PCIe 4.0 x4, supports half-height single-slot cards)
(max length ≤170mm, max thickness ≤20mm)
Ethernet 2 x 10G SFP+ (Fiber) (Intel X710)
1 x 10GbE RJ-45 LAN (Realtek RTL8127)
1 x 2.5GbE RJ-45 LAN (Intel i226-LM)
Wireless - Wi-Fi 7 (Intel® BE211) (M.2 2230 E-Key)
- Bluetooth® 6
Video Output 1 x HDMI (2.1) (4K@120Hz)
2 x USB 4 Type-C (40 Gbps, DP 2.1)
Audio Output 1 x HDMI (2.1)
2 x USB Type-C
1 x 3.5mm Combo Jack
Audio Input 1 x 3.5mm Combo Jack
I/O Ports 1 x HDMI (2.1) (FRL)
2 x USB 4 Type-C (40 Gbps)
3 x USB 3.2 Gen 2 Type-A (10 Gbps)
2 x USB 2.0
2 x 10G SFP+
1 x 10Gb Ethernet RJ-45 Port
1 x 2.5Gb Ethernet RJ-45 Port
1 x 3.5mm Combo Jack
Button / Hole 1 x Power Button
1 x Reset Hole
Cooling CPU Cooling Type : Blower-style Fan + Dual Heat Pipes
CPU Fan : 83 x 18 mm Turbo Fan
Voltage : DC 12V
Fan Speed : 5100 RPM (max)
Noise Level : 32-45dB (Balance mode) / 30-38dB (Quiet mode)
Power Adapter DC 20V, 12.63A (240W) Power Adapter
Operating System Windows 11 Pro
Dimensions 196 x 189 x 48 mm
Weight 1.4 kg
