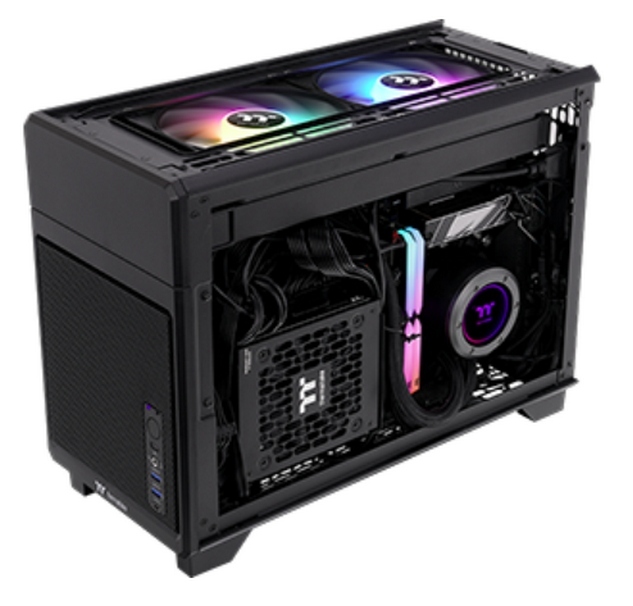

Thermaltake TR100 mini-ITX Chassis
TR100 Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. It includes a PCIe 4.0 riser cable, supports an SFX power supply and features space for two 120mm / 140mm fans on the top as well as room for a 280mm AIO cooler, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visually appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
Compact Design
The TR100 is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.
Superior GPU Support
The TR100 supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.
Efficient Cooling Solutions
The TR100 supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
Redefining Portable Gaming
More than just a case, the TR100 is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!
TT Travel Trunk for TR100
The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.
Easy Access with Removable Panels
The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.
SFX PSU Support
The TR100 features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.
Hardware Support and Cooling Solution
Despite its compact footprint, the TR100 still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5" SSDs. For cooling support, up to two 120mm/140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.
Storage Support
The TR100 supports up to two 2.5" SSDs, one in each chamber.
Handy I/O Ports
Utilise easy connectivity with the TR100's array of ports, consisting of :
- 1 x Power Button
- 1 x Reset button
- 1 x HD Audio Jack
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
Air Intake and Exhaust
Despite its compact size, the TR100 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
keeping It Clean
There are filters at the top, front and side of the chassis to protect the system from dust.
Specifications :
| Series |
TR100 |
| Case Type |
Mini Case |
| Panel |
Steel |
| Material |
SPCC |
| Motherboard Support |
mini-ITX |
| Drive Bays |
2 x 2.5” or 1 x 2.5” |
| Expansion Slot |
3 |
| Fan Support |
Top : 2 x 120 mm / 2 x 140 mm
|
| Radiator Support |
Top : 1 x 120 / 140 / 240 / 280 mm |
| PSU Support |
SFX / SFX-L (optional) |
| Front I/O Port |
USB 3.2 (Gen 2) Type-C x 1,
USB 3.0 x 2,
HD Audio x 1 |
| Clearance |
CPU cooler height limitation : 68 mm
VGA length limitation : 360 mm
VGA Width limitation : 70mm
PSU length limitation : 130 mm |
| Color |
Black / Snow White / Future Dusk / Gravel Sand |
| Dimensions (W x D x H) |
179 x 391 x 294 mm |
