Ubiquiti UniFi Dream Wall (UDW) Wireless Gateway (NE-UUDW)

Quad-core ARM® Cortex®-A57 at 1.7 GHz
4GB Ram
WiFI 6 Dual Band AX2700, Pre-install 512GB Micro-SD for NVR, Build-in 128GB SSD for detection recordings.
License-Free SD-WAN , VPN Server, Stateful Firewall, Application-Aware Layer 7 Firewall, Ad Blocking, VLAN, Multicast DNS, Advanced QoS

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

HK$12,360.00

HK$11,330.00

{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )

{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

Description

Shipping & Payment

Customer Reviews

Description

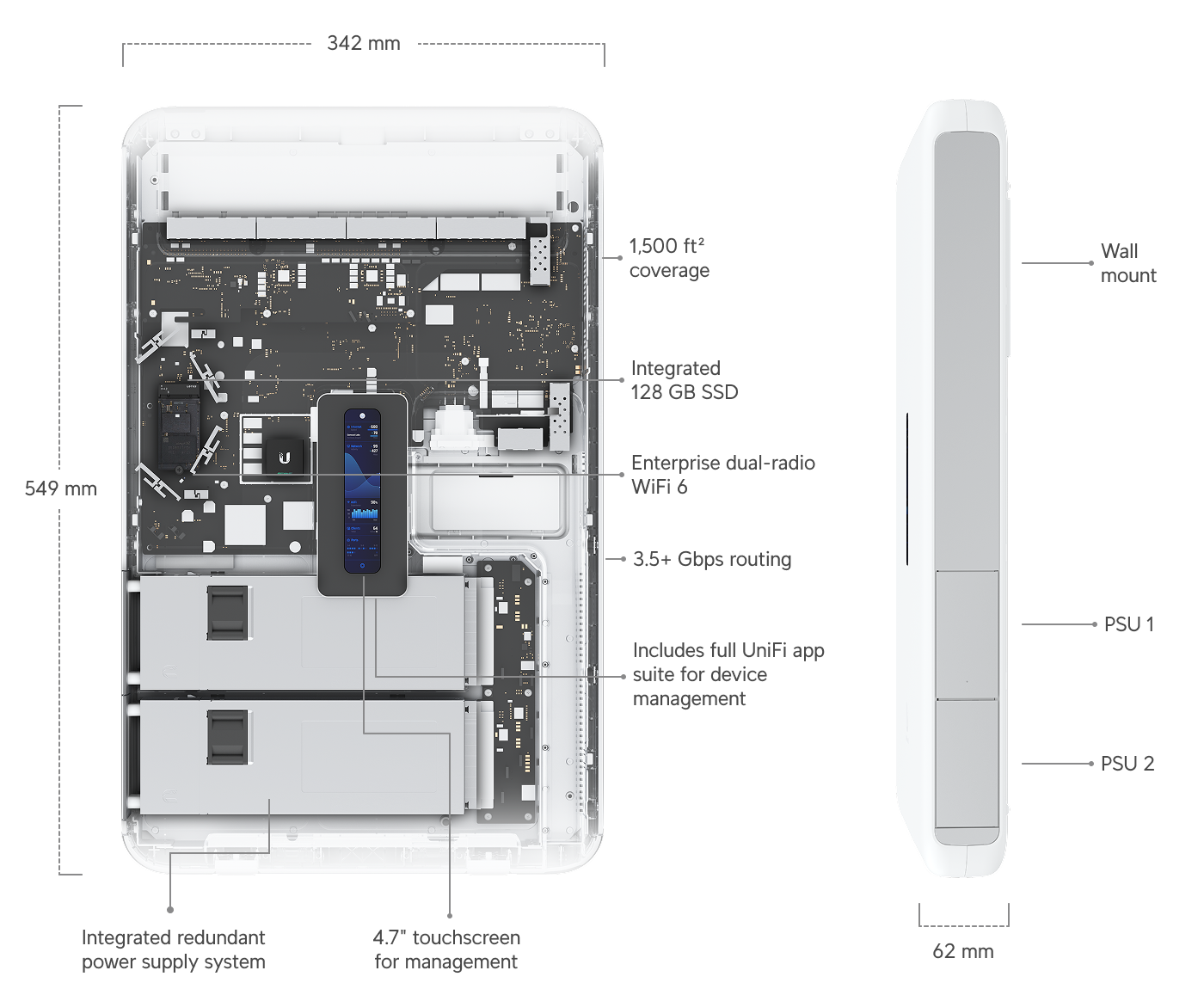

System

Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory: 4 GB
On-board Storage: 16 GB eMMC
Storage Expansion:

Integrated 128 GB SSD (for detection recordings)
Pre-installed 512 GB microSD card (for NVR storage)

Integrated WiFi

WiFi Standard: 802.11a/b/g/n/ac/ax (WiFi 6)
Throughput:

5 GHz: 2.4 Gbps
2.4 GHz: 300 Mbps

MIMO:

5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain:

5 GHz: 6 dBi
2.4 GHz: 5.9 dBi

Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

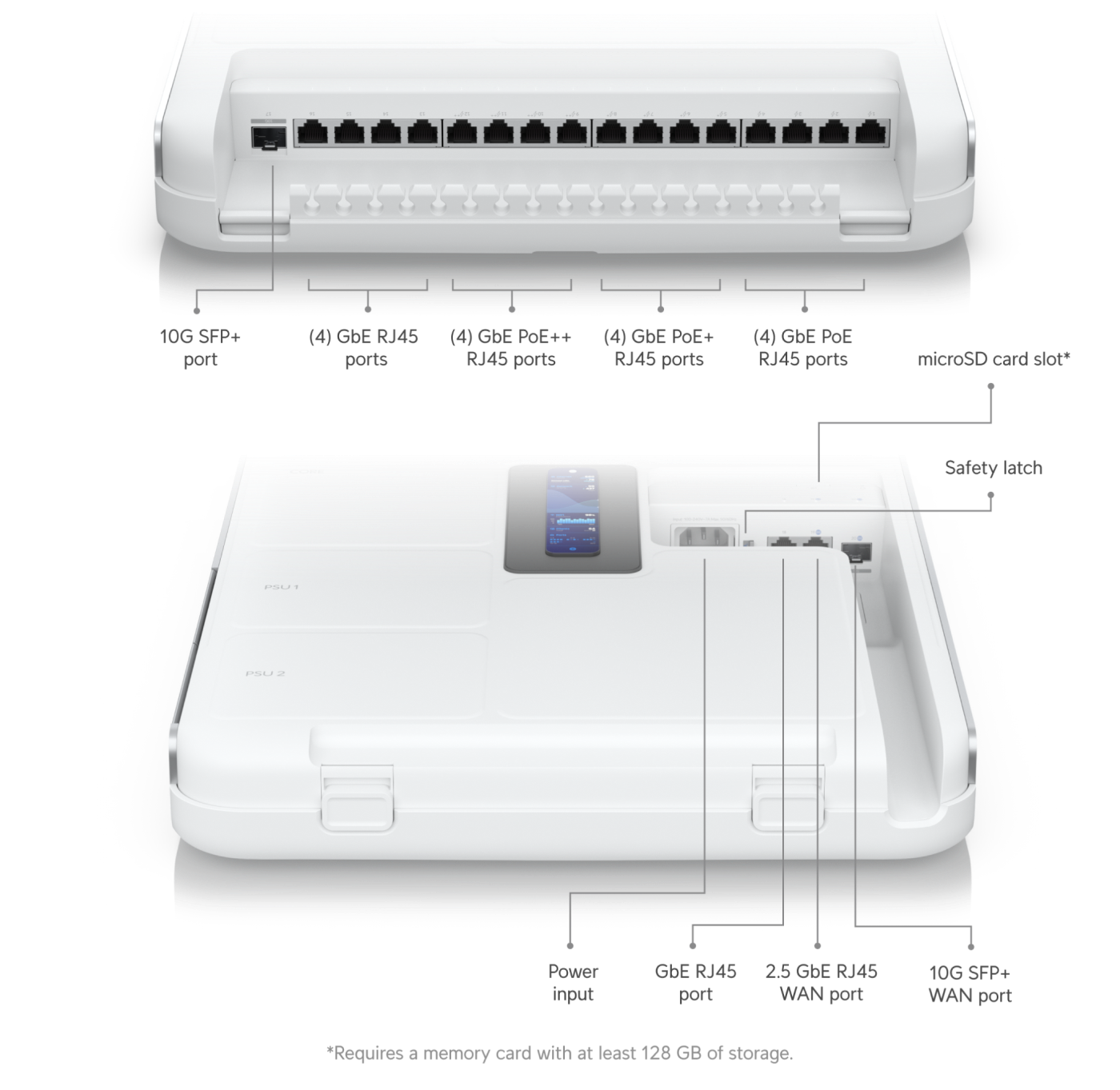

Port Layout

WAN Ports: (1) 2.5 GbE RJ45 and (1) 10G SFP+
LAN Ports:

(17) 1 GbE RJ45 ports (including 4 PoE++; 4 PoE+; 4 PoE)
(1) 2.5 GbE RJ45 port
(2) 10G SFP+ ports

PoE Budget

Total PoE Budget: 420W
Max. PoE Wattage per Port by PSE:

PoE: 15.4W
PoE+: 30W
PoE++: 60W

Performance

IDS/IPS Throughput: 3.5 Gbps
Managed UniFi Devices: 100+
Simultaneous Users Connected: 300+
Managed Cameras Supported: (12) HD or (7) 2K or (4) 4K

Power & Physical

Power Method: Universal AC input 100–240V AC, 7A Max., 50/60Hz
Power Supply: (2) Hot-Swappable AC/DC 550W PSUs (1 pre-installed)
Max. Power Consumption: 532W (Including PoE Output)
Heat Dissipation: 382 BTU/hr (Excluding PoE Output)
LCM Display: 4.7" touchscreen
Dimensions: 549 x 342 x 62 mm (21.6 x 13.5 x 2.4")
Weight: 8.6 kg (19 lb)
Enclosure Material: Polycarbonate, galvanized steel, aluminum alloy
Mount Material: Stainless steel
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software Highlights

Security: Stateful firewall, application-aware Layer 7 firewall, DPI & traffic identification, intrusion prevention (IPS/IDS), ad blocking.
VPN & SD-WAN: License-free SD-WAN, Site Magic site-to-site VPN, WireGuard, OpenVPN, IPsec, L2TP, Teleport zero-configuration VPN.
Advanced Networking: Multi-WAN load balancing, OSPF/BGP dynamic routing, advanced QoS, integrated RADIUS server, IPv6 ISP support.
Compliance: CE, FCC, IC, Anatel: 18314-23-08356; NDAA compliant.
