(By Order Around 4-6 Weeks) Ubiquiti UniFi Pro XG Aggregation (USW-PRO-XG-AGGREGATION) (NE-UUSXAG+CE-ACPC)

(By Order Around 4-6 Weeks) Ubiquiti UniFi Pro XG Aggregation (USW-PRO-XG-AGGREGATION) (NE-UUSXAG+CE-ACPC)

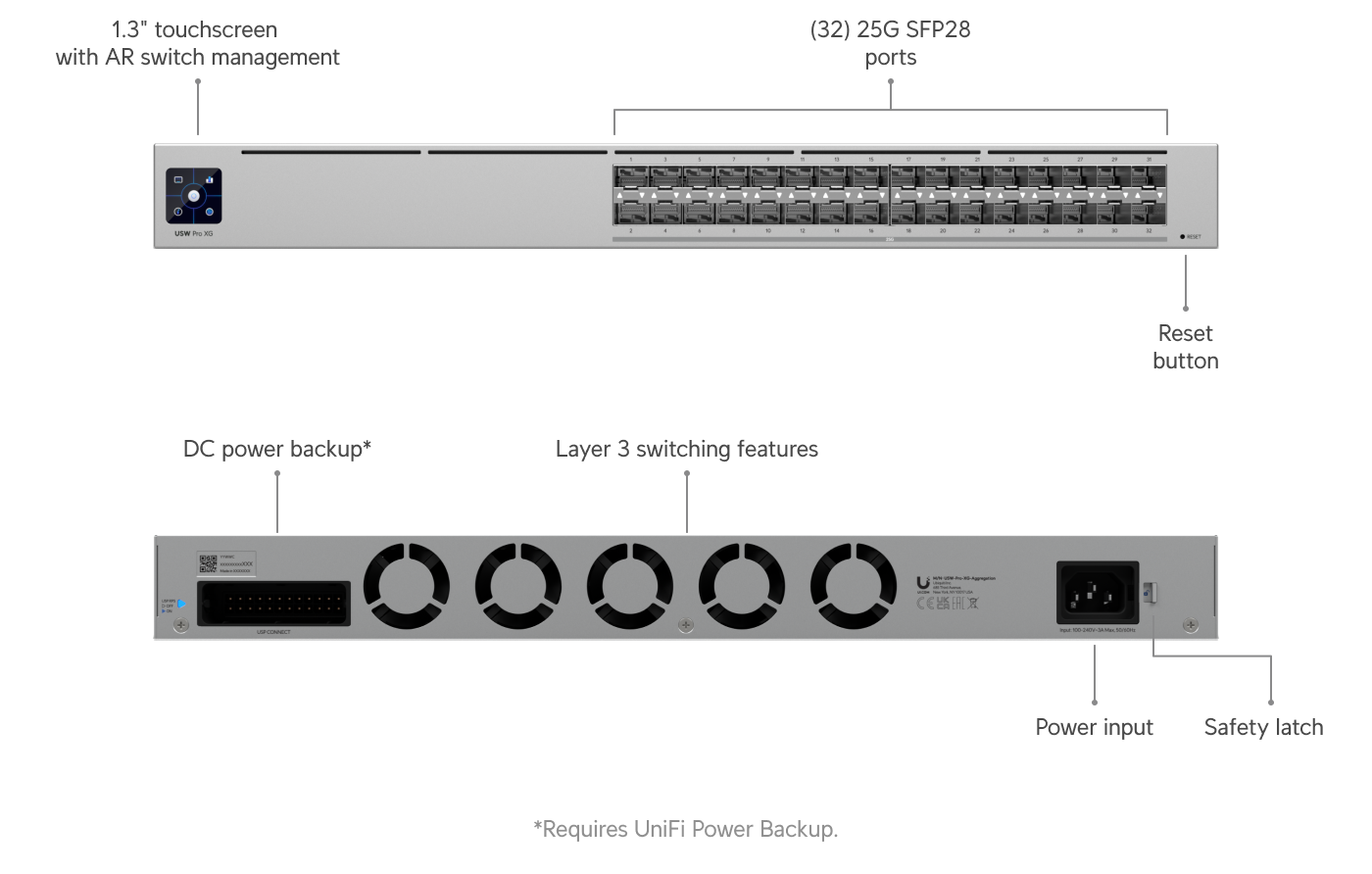

32 Port 25G SFP28 Switch, Build in 1.3" Touch Screen with AR Switch Management, Support VLAN, Layer 3 Features, DC Redundancy Power Backup, UniFi Network Control , SGCC Steel Housing

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

HK$30,900.00
HK$26,780.00
{{shoplineProductReview.avg_score}}( {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}} )
{{amazonProductReview.avg_rating}}( ({{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}) )
Quantity Product set quantity
Sign in/up now
Add to Wishlist
Sign in/up now
The maximum quantity per submit is 99999
This quantity is invalid, please enter a valid quantity.
Sold Out

Not enough stock.
Your item was not added to your cart.

Not enough stock.
Please adjust your quantity.

{{'products.quick_cart.out_of_number_hint'| translate}}

{{'product.preorder_limit.hint'| translate}}

Limit {{ product.max_order_quantity }} per order.

Only {{ quantityOfStock }} item(s) left.

Please message the shop owner for order details.
Sign in/up now
Add to Wishlist
Sign in/up now
Description
Shipping & Payment
Customer Reviews
Description
Overview
  • Model: USW-Pro-XG-Aggregation
  • Form Factor: 1U Rack mount
  • Layer 3 Support: Yes (✓)
  • Power Redundancy: DC Power Backup supported (USP RPS)
  • Etherlighting™: Yes (✓)
Port Layout
  • 25G SFP28 Ports: 32 (Supports 25G / 10G / 1G auto-negotiation)
Performance
  • Switching Capacity: 1.6 Tbps
  • Total Non-Blocking Throughput: 800 Gbps
  • Forwarding Rate: 1.2 Bpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000 entries
  • IPv4 Static Routes: 512 entries
  • Packet Buffer Size: 8 MB
  • Access Control Lists (ACL):
    • IPv4: 256 entries
    • MAC: 256 entries
Layer 3 Features
  • DHCP Server (Local Networks): ✓
  • DHCP Relay: ✓
  • Inter-VLAN Routing (Local Networks): ✓
  • Static Routing (Local Networks): ✓
Layer 2 Features
  • LACP Port Aggregation: ✓
  • Spanning Tree Protocol (STP & RSTP): ✓
  • Pro AV Profiles: ✓ (Supports Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron, etc.)
  • Advanced IGMP Configuration: ✓ (Querier, Fast Leave, Router Port)
  • IGMP Snooping: ✓
  • 802.1X Network Access Control: ✓
  • MAC-Based ACLs & Device Isolation: ✓
  • DHCP Snooping & Guarding: ✓
  • Egress Rate Limit: ✓
  • Flow Control: ✓
  • Storm Control: ✓
  • Multicast & Broadcast Rate Limiting: ✓
  • MAC Address Blocking: ✓
  • IP-Based ACLs & Network Isolation: ✓
  • MAC-Based Port Restriction: ✓
  • Port Isolation: ✓
  • Port Mirroring: ✓
  • Jumbo Frames: ✓
  • LLDP-MED: ✓
  • Voice VLAN: ✓
  • Loop Protection: ✓
  • Virtual Network Override: ✓
Hardware Specifications
Power Specifications
  • Max. Power Consumption: 200W
  • Power Method:
    • (1) Universal AC input: 100–240V AC, 50/60 Hz
    • (1) USP RPS DC backup input
  • Power Input Method: AC input
  • Power Supply: Internal AC/DC 200W
  • Supported Voltage Range: 100–240V AC
Physical & Environmental

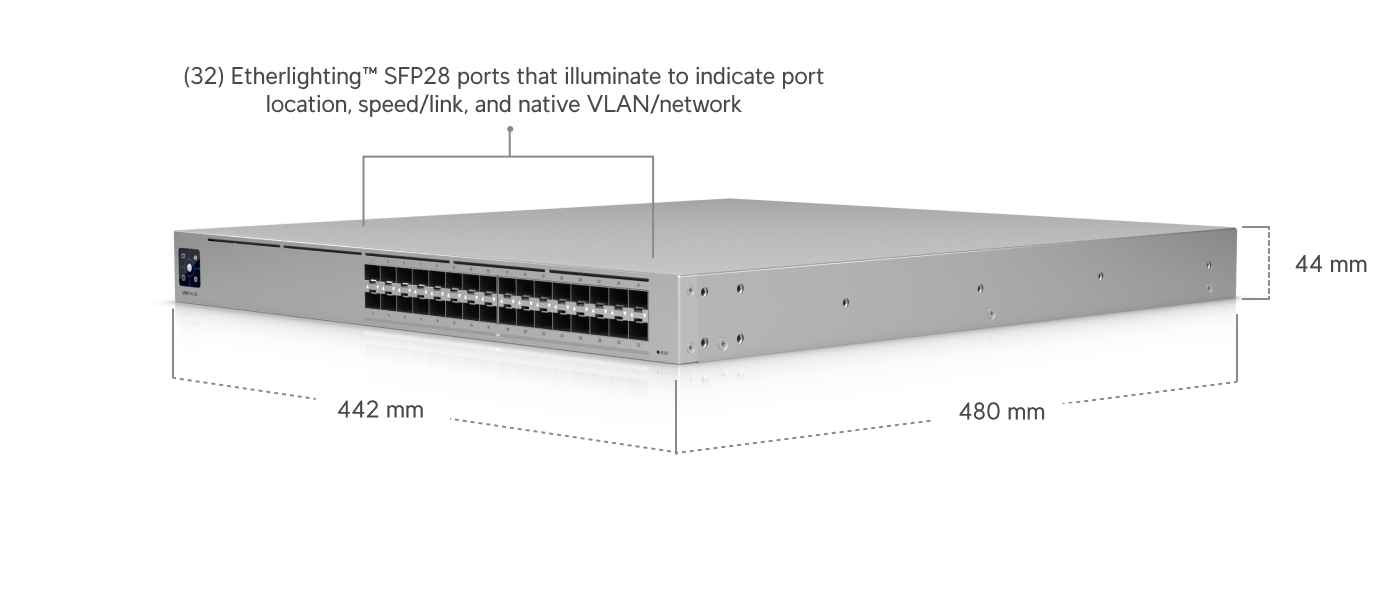

  • Dimensions: 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9")
  • Weight:
    • Without mounting brackets: 7.1 kg (15.7 lb)
    • With mounting brackets: 7.2 kg (15.9 lb)
  • Enclosure Material: SGCC steel
  • Mount Material: SGCC steel
  • Supported Rack Depth: 482.6 mm (19") 4-post rack, post depth between 600 to 1,066 mm (23.6–42")
  • Display: 1.3" color LCM touchscreen
  • Management Interface: Ethernet AR (Augmented Reality)
  • Heat Dissipation: 682 BTU/hr
  • ESD Protection: Air: ± 12kV, Contact: ± 8kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
Certifications & Compliance
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC, Anatel (05977-25-08356)
Etherlighting™ & LEDs
  • Etherlighting™ SFP28 Ports: ✓
  • LED Indicators: RPS backup power status LED ✓
Software Requirements
  • Management Application: UniFi Network
