Overview

• Product Name: UniFi Switch Mission Critical

• Model: USW-Mission-Critical

• Product Type: UPS-Integrated Layer 2 / Layer 3 Ethernet Switch

• Form Factor: 1U Rack-mountable

• Key Features: Internal backup lithium-ion battery, high-power PoE++ output, and backup power control AC outlets


Performance & Capacity

• Switching Capacity: 18 Gbps

• Total Non-Blocking Throughput: 9 Gbps

• Forwarding Rate: 13 Mpps

• VLAN Support: 1,000

• MAC Address Table Size: 8,000 entries

• Packet Buffer: 0.5 MB

• Access Control Lists (ACL): IPv4: 128 / MAC: 128

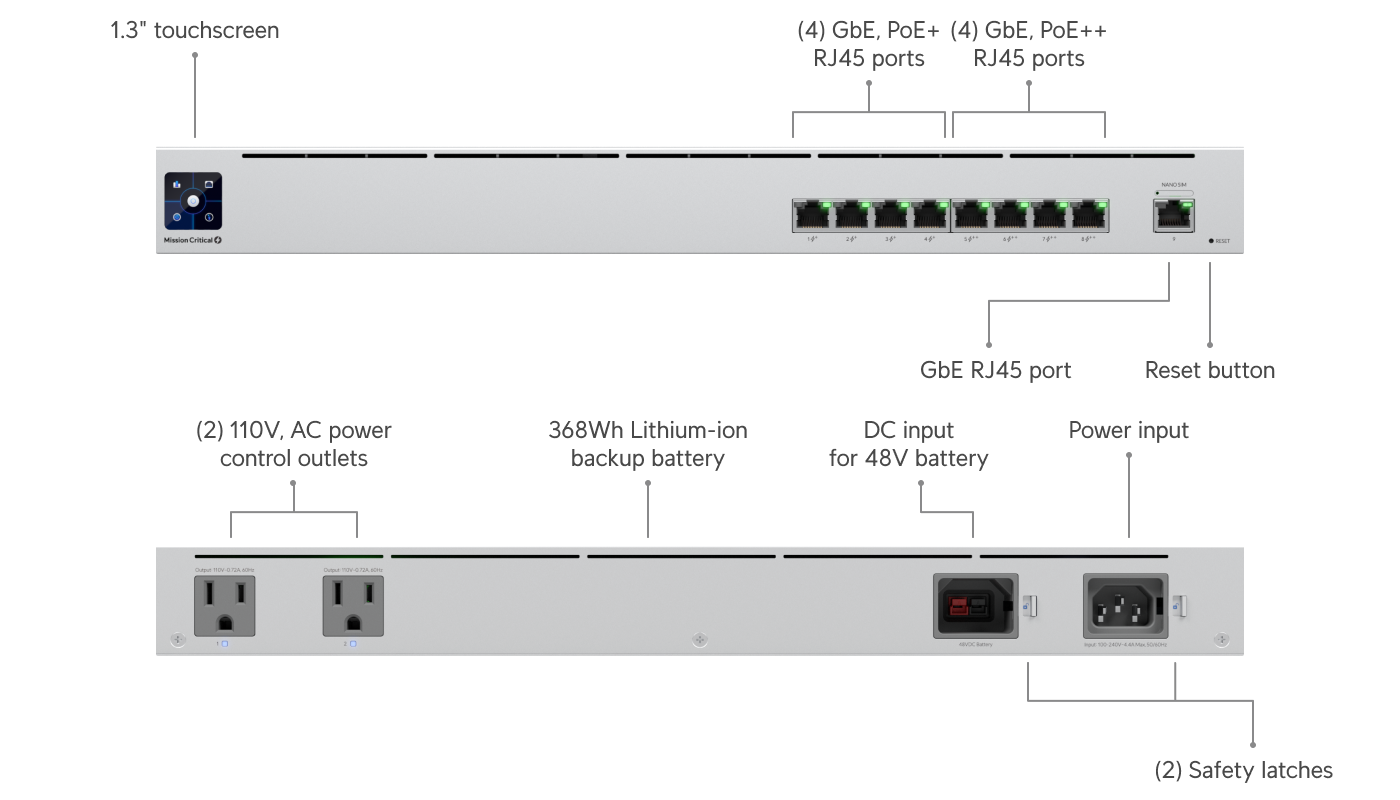

Port Layout & PoE

• Total Physical Ports: 9 GbE RJ45 ports (10/100/1000 Mbps)

• PoE Port Distribution:
  • PoE++ (802.3bt): 4 ports

  • PoE+ (802.3at): 4 ports

  • Non-PoE Data / Management Port: 1 port

• Total PoE Availability: 120W (when powered by AC)

• Max. PSE Wattage per Port:
  • PoE+ Port: Up to 32W

  • PoE++ Port: Up to 64W

• PoE Voltage Range:
  • PoE Mode: 44–57V DC

  • PoE+ / PoE++ Mode: 50–57V DC


Power & Battery System

• Internal Battery Type: Lithium-ion (Li-ion)

• Internal Battery Capacity: 368 Wh

• Backup AC Power Outlets:
  • US Version: (2) 110V AC power control outlets (Max. 0.72A, 60 Hz)

  • EU Version: (2) 230V AC power control outlets (Max. 0.35A, 50 Hz)

  • AC Outlet Output Budget: 80W

• Power Method:
  • Universal AC Input: 100–240V AC, 50/60 Hz (built-in 240W AC/DC power supply)

  • External DC Backup Input: 48V DC Terminal Block

• Power Consumption:
  • Base Consumption (excluding PoE / AC outlet load): 50W

  • Max. Power Consumption (including full PoE and AC outlet load): 240W

• Heat Dissipation: 170.6 BTU/hr (excluding PoE output)


Physical & Environmental

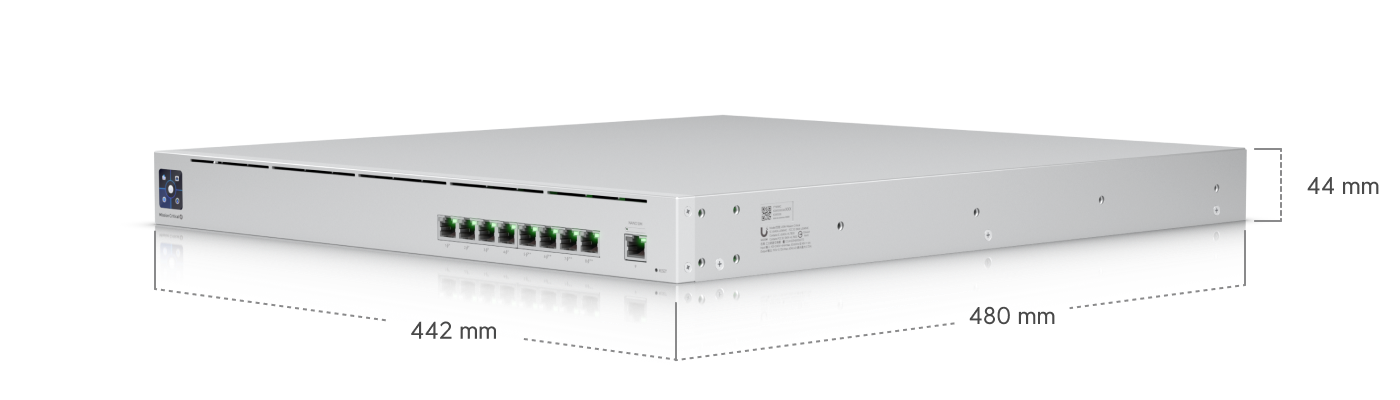

• Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7")

• Weight:
  • Without Mount Brackets: 9 kg (19.9 lb)

  • With Mount Brackets: 9.2 kg (20.3 lb)

• Enclosure & Mount Material: SGCC Galvanized Steel

• Rack Support: 19" 4-post standard rack (depth requirement: 700 to 1,000 mm)

• LCM Display: 1.3" Touchscreen LCM Color Display

• ESD/EMP Protection: Air: ±24kV, Contact: ±24kV

• Ambient Operating Temperature: -5°C to 40°C (23°F to 104°F)

• Ambient Operating Humidity: 5% to 95% (non-condensing)

• Certifications: CE, FCC, IC, Anatel: 06679-25-08356


Software & Networking Features

• Layer 2 / Layer 3 Support: Complete Layer 2 feature set, Layer 3 static routing, DHCP server

• Link Aggregation: LACP Port Aggregation

• Spanning Tree Protocol: STP, RSTP (with priority configuration and port disabling)

• Multicast & Services: Advanced IGMP Snooping, mDNS, LLDP-MED, Voice VLAN

• Security & Access Control:
  • 802.1X Authentication and MAC-based Authentication

  • MAC/IP-based Access Control Lists (ACL)

  • Device and Network Segmentation

  • DHCP Snooping and DHCP Guarding

• Traffic Management & Optimization:
  • Egress Rate Limit

  • Flow Control and Storm Control

  • Multicast / Broadcast Rate Limiting

  • Port Isolation and Port Mirroring

  • Jumbo Frames

  • Proprietary Loop Protection


Management Requirements

• Management Application: UniFi Network

• Software Requirement: UniFi Network Application Version 6.2.26 or later
