Name: [Mid-NOV Arrival Pre-Order] j5create JCD397 11 in 1 Functions 4K Elite Triple-Monitor USB-C® Gen2 (10Gbps) Mini Dock (UH-JCD397) [Made in Taiwan]
Brand: j5create
SKU: 6307372ee0d5d00025d1b4a5
Price: 499.0 HKD
Availability: InStock

[Mid-NOV Arrival Pre-Order] j5create JCD397 11 in 1 Functions 4K Elite Triple-Monitor USB-C® Gen2 (10Gbps) Mini Dock (UH-JCD397) [Made in Taiwan]

▸ Built-in USB-C E-Mark chip
▸ Support MST, connect with three 4K monitor without installing driver (2x HDMI、1x DP)
▸ Support Dual 4K60 or triple 4K30 monitor
▸ 1x USB-C 10Gbps
▸ 2x USB-A 10Gbps
▸ 1x USB-C 5Gbps with 100W PD pass-through
▸ 1x Gigabit Ethernet
▸ SD & microSD 4.0
▸ Made in Taiwan

Free delivery for order over$2000 (HK only) (No free shipping for Macau monitors,chair,ASUS products on order

HK$948.00

HK$499.00

{{shoplineProductReview.avg_score}} {{'product.product_review.stars' | translate}} | {{shoplineProductReview.total}} {{'product.product_review.reviews' | translate}}

{{amazonProductReview.avg_rating}} {{'product.product_review.stars' | translate}} | {{amazonProductReview.total_comment_count}} {{'product.product_review.reviews' | translate}}

The maximum quantity per submit is 99999

This quantity is invalid, please enter a valid quantity.

Sold Out

Please message the shop owner for order details.

Add to Wishlist

Description

Shipping & Payment

Customer Reviews

Description

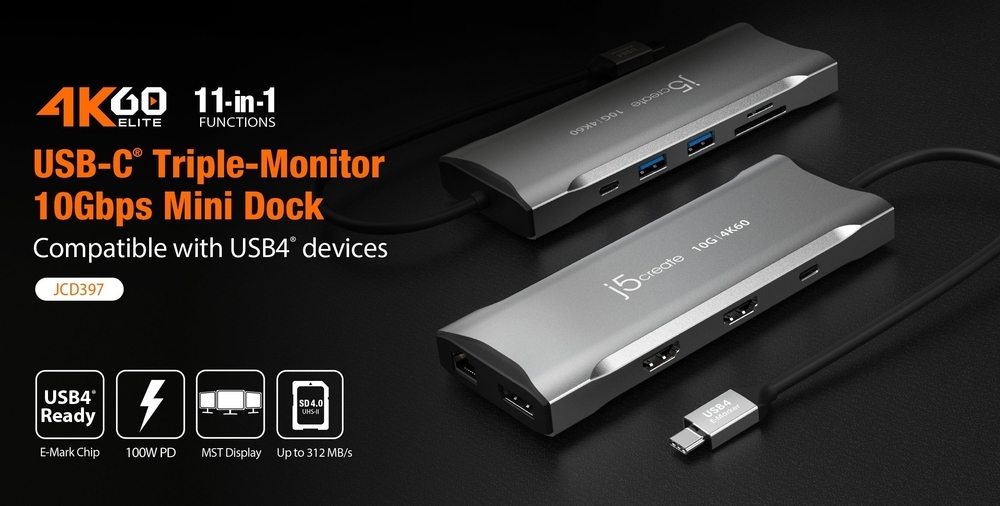

JCD397 j5create 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock

Windows® 10 | macOS®

Introduction

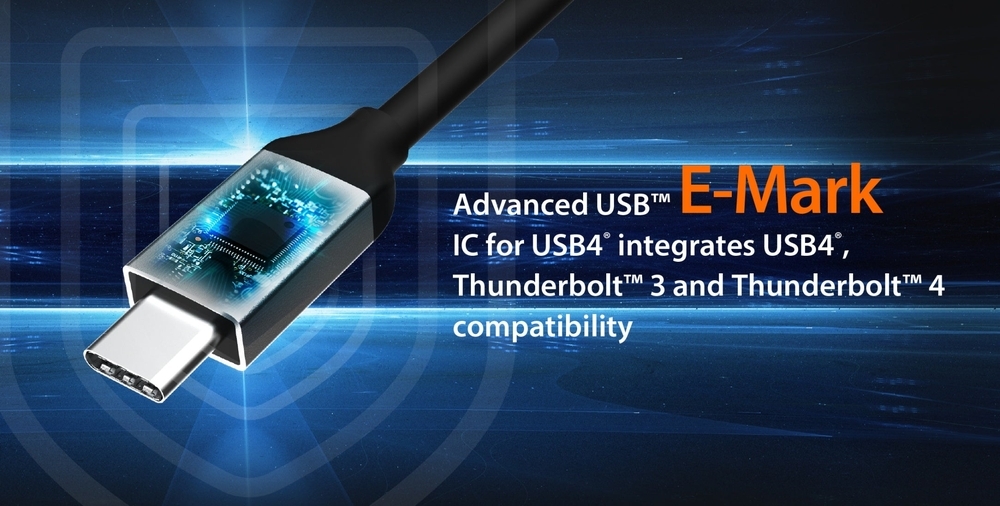

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

Features

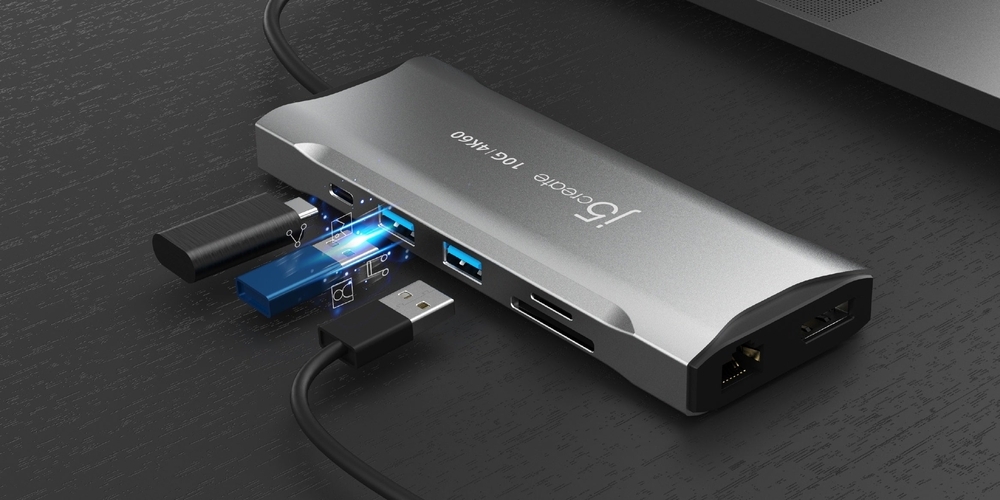

Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
Charge and power connected laptop and peripherals with 100W Power Delivery

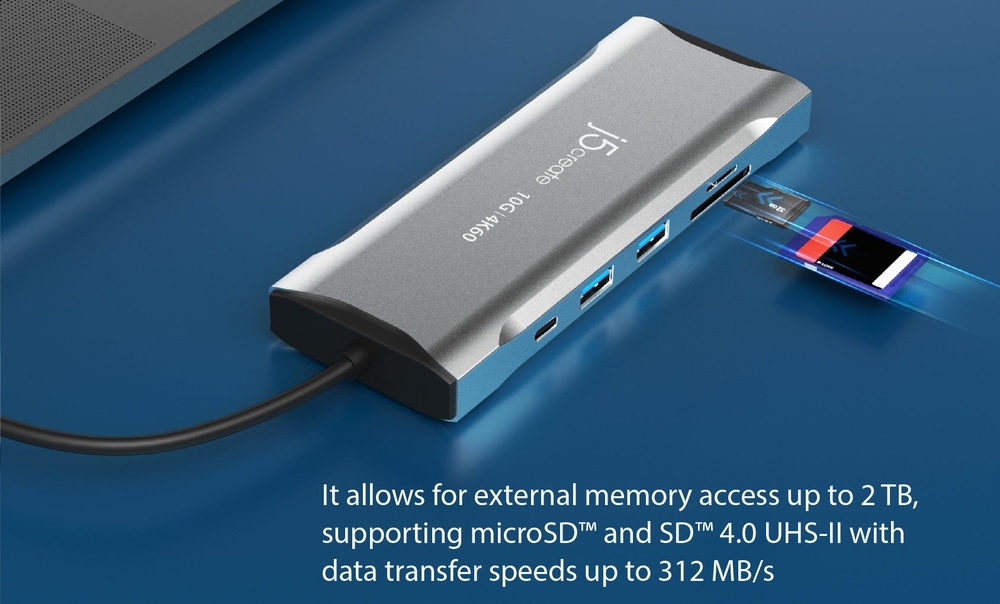

SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer

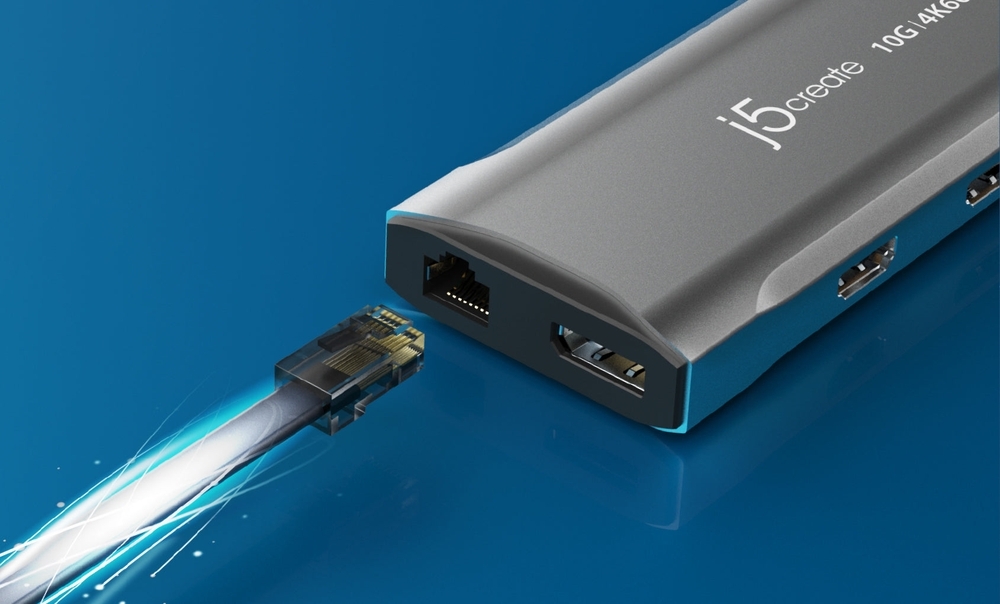

Easily add a wired network connectivity with the Gigabit Ethernet port
Plug-and-play, no driver installation required
Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.

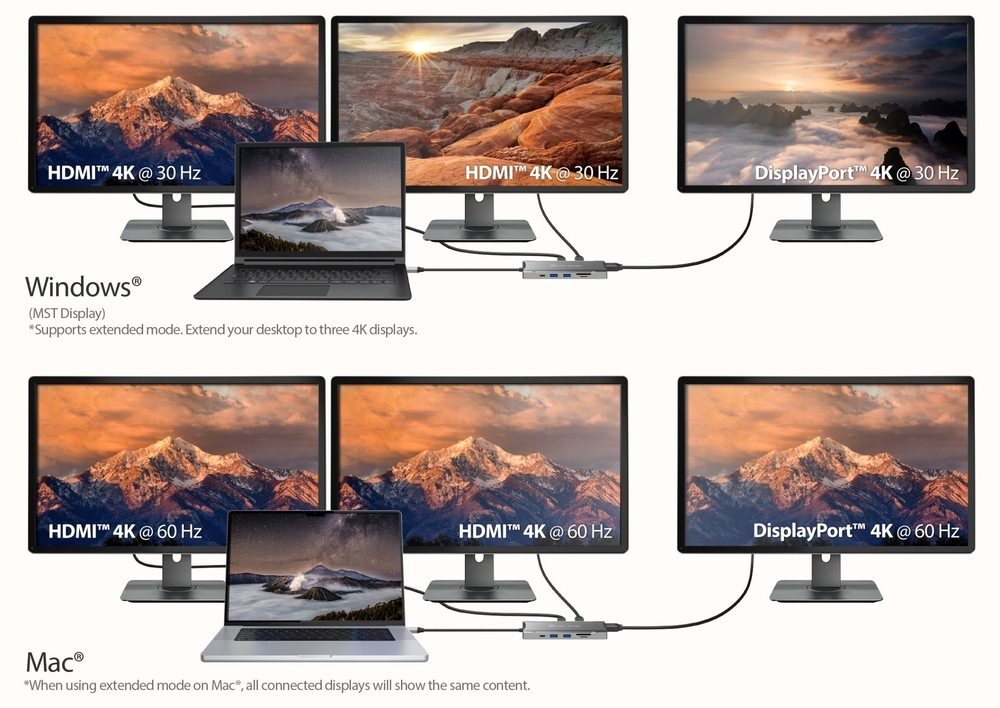

Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*
Made in Taiwan
2-year warranty

System Requirement

Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0
The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration
The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows:

MacBook Air® 13" 2019 or later
MacBook Pro® 15" 2017 or later
MacBook Pro® 16"
iPad Pro® 11"/12" 2018 or later
Surface™ Pro 7
Surface™ laptop 3

Special Notes

A host laptop without MST support can only connect to one additional monitor
The MST protocol is not currently supported by macOS® or Chrome OS™. The display output is limited to mirrored mode when connected.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
If connected to a DisplayPort™ 1.2 device, performance will be limited to 3840 x 2160 @ 30 Hz (Windows®)
The mini dock can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time

Package Contents

1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock
1 - Quick Installation Guide (QIG)

Specifications

Hardware
Host Connector	1 - USB-C® Male
Video Output	2 - HDMI™ Female 1 - DisplayPort™ Female
Power Source	Bus-powered or self-powered
Network Interface	RJ45 (Gigabit Ethernet)
Audio Supported	Yes

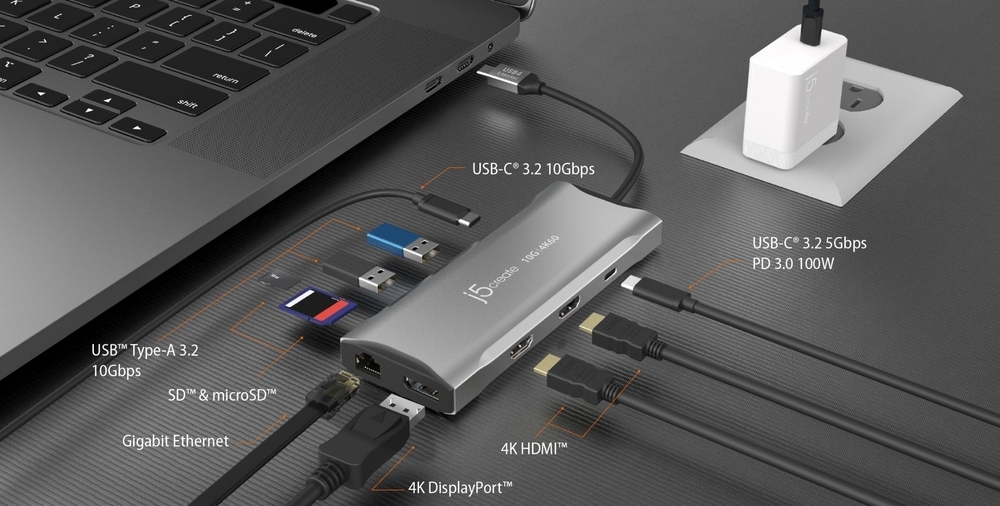

Ports	1 - USB-C® 10Gbps 1 - USB-C® 5Gbps with Power Delivery 3.0 2 - USB™ Type-A 10Gbps 1 - USB-C® Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - SD™ & microSD™ 4.0 memory card reader/writer 1 - RJ45 Gigabit Ethernet
Performance
Maximum Display Resolution	3840 x 2160
Maximum Display Refresh Rate	Windows® (MST) - 3840 x 2160 @ 60 - 2560 x 1440 @ 144 via HDMI™ - 1920 x 1080 @ 240 via DP™
Maximum Data Transfer Rate	10Gbps
Displays Supported	3
Compatible Networks	10/100/1000
Audio Channel	2.1 via HDMI™
Power
Power Delivery	Up to 100W via USB-C®
Power Consumption	≤ 650 mA
Input Current	Up to 5A
Input Voltage	Up to 20V
Output Current	Up to 4.25A
Output Voltage	Up to 20V
Physical Specifications
Color	Space Grey
Enclosure Type	Aluminum
Cable Length	7.87 in. (20 cm)
Product Height	5.8 in. (148 mm)
Product Width	2.17 in. (55 mm)
Product Depth	0.67 in. (17 mm)
Product Weight	4.36 oz (123.5g)
Storage Temperature	0 to 155°F (-17 to 68°C)
Storage Humidity	< 85% non-condensing
Operating Temperature	30 to 116°F (-1 to 41°C)
Operating Humidity	< 85% non-condensing

11-in-1 Functions

All the connections you need for maximum productivity.

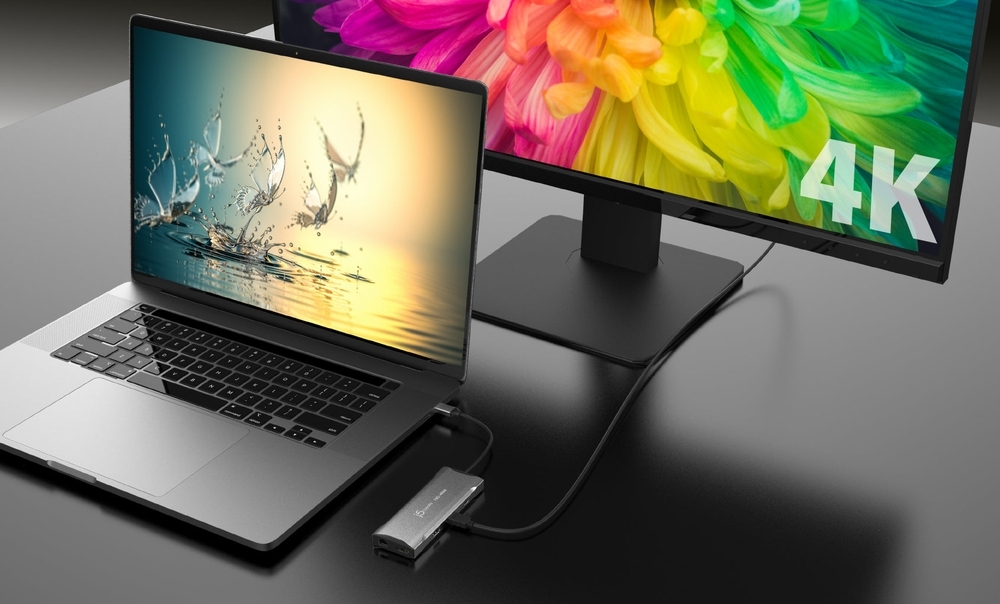

4K HDMI™ Output

Mirror or extend your screen and directly output resolutions up to 4K UHD @ 60 Hz.

Triple 4K Display Support

Create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output on compatible USB-C® laptops with DisplayPort™ 1.4 and Multi-Stream Transport (MST).
