Ubiquiti UniFi Express 7 WiFi 7 Tri-Band Gateway (NE-UUX7O) (CE-MNBC06U)

Overview

• Form Factor: Compact desktop
• Coverage Area: 160 m² (1,750 ft²)
• UniFi Application Suite: Network only

System & Performance

• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• IDS/IPS Throughput: 2.3 Gbps
• Managed UniFi Devices: 30+
• Simultaneous Users Connected: 300+

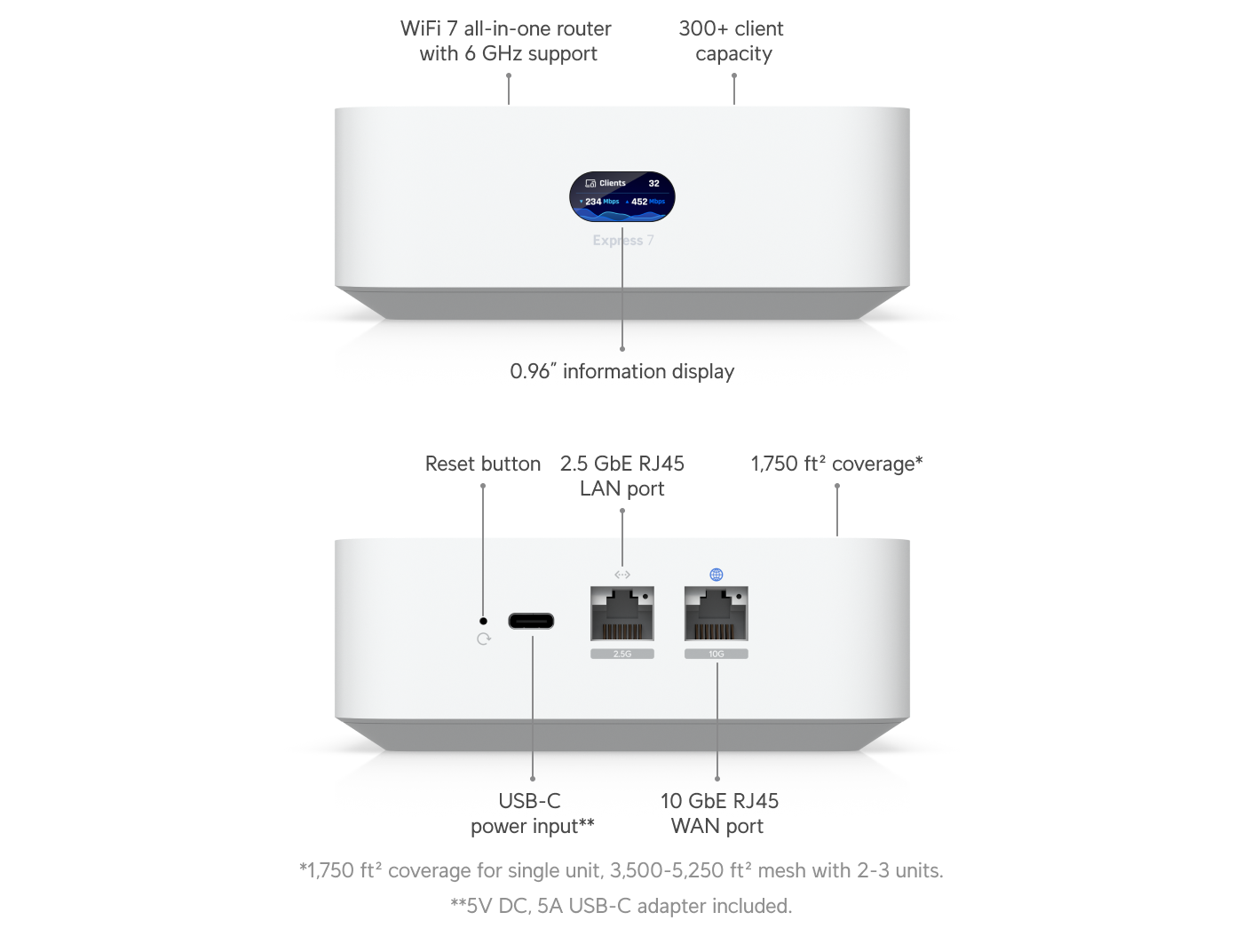

Port Layout

• Max. / Default WAN Port Count: 1
• Default WAN Port: (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
• LAN Port: (1) 2.5 GbE RJ45 (2.5G/1G/100M/10M)

Integrated WiFi

• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6 / 6E, WiFi 7)
• Throughput:
  • 6 GHz: 5.7 Gbps
  • 5 GHz: 4.3 Gbps
  • 2.4 GHz: 688 Mbps
• MIMO:
  • 6 GHz: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
  • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain:
  • 6 GHz: 6 dBi
  • 5 GHz: 7 dBi
  • 2.4 GHz: 4 dBi
• Max. TX Power:
  • 6 GHz: 24 dBm
  • 5 GHz: 26 dBm
  • 2.4 GHz: 23 dBm
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs:
  • Gateway Mode: 4 per radio
  • AP Mode: 4 per radio

Supported Data Rates:

• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Security

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Ye
• DPI & Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention / Detection (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

• License-Free SD-WAN: Yes
• Site-to-Site VPN: Site Magic, IPsec, OpenVPN
• VPN Server: Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
• VPN Client: OpenVPN, WireGuard

Networking

• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
• Integrated RADIUS Server: Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes
• Policy-based WAN and VPN Routing: Yes
• Customizable DHCP Server: Ye
• IPv6 ISP Support: Ye
• IGMP Proxy: Yes

Hardware & Power

• Power Method: USB Type-C (5V DC / 5A) (power adapter included)
• Supported Voltage Range: 100–240V AC
• Max. Power Consumption: 22W
• Heat Dissipation: 75 BTU/hr
• LCM Display: 0.96" status display screen
• Management Interfaces: Ethernet, Bluetooth
• LEDs: Ethernet
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ±8kV, contact: ±4kV

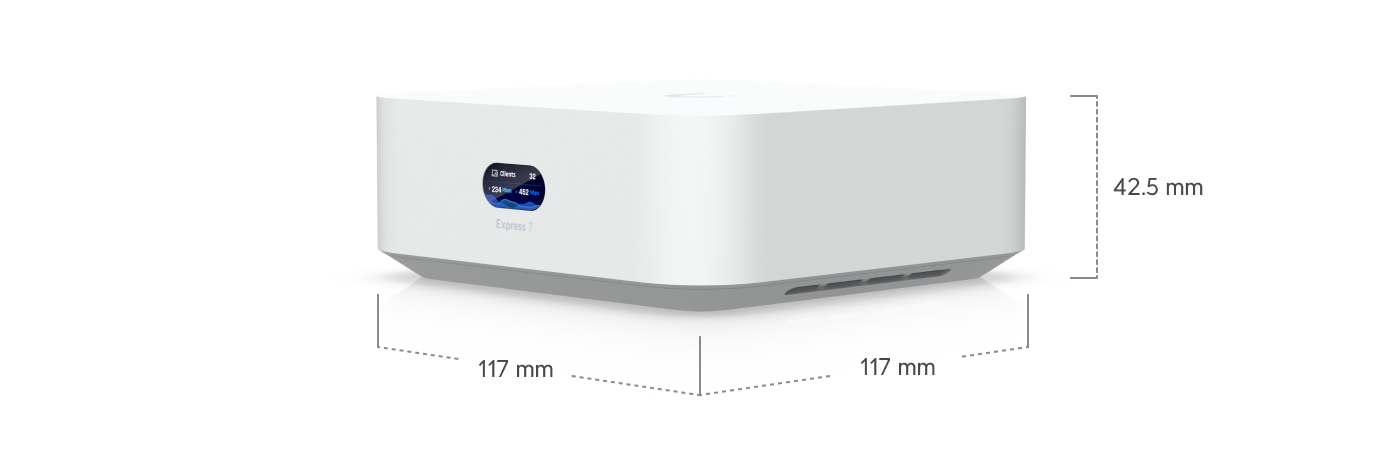

• Dimensions: 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67")
• Weight: 443 g (1 lb)
• Enclosure Material: Polycarbonate
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC, Anatel: 06656-25-08356
